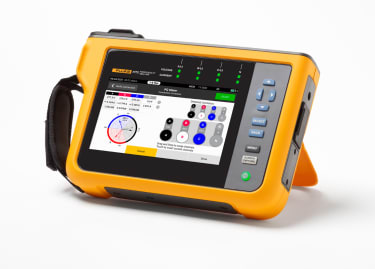

Fluke 1777 Power Analyser

Overview

The Fluke 1777 Three-Phase Power Quality Analyser simplifies the method of power quality logging, troubleshooting, and analysis. Speedy logging and easier ways to perform power quality studies offering automatic measurements, a straightforward user interface and setup, best-in-class specifications, and a simplified reporting platform. Inbuilt measurement capacity to perform approximately 10 logging sessions of 8 weeks with 1-minute intervals and 100 events. The number of possible logging sessions and logging period depends on user requirements with a user-accessible micro SD slot for flash memory expansion. The Fluke 1777 Three-Phase Power Quality Analyser can also be powered directly from the measurement circuit, eliminating the need to find a power outlet or use a lengthy extension cord

The Fluke 1777 Three-Phase Power Quality Analyser captures fast transients up to 8 kV at a 20MHz sampling speed capability. Harmonics up to 30 kHz, dips and swells, as well as the voltage, current, and power measurements that enable you to characterize your electrical system. Over 500 power quality parameters are logged by default and the easy to follow guided setup makes it easy to select the right parameters for the system you’re working on. The Fluke 1777 Power Quality Analyser has ability to capture Current inrush for fast acting switching loads and Flicker measurements to check with compliance to IEC 61000-4-15 Class F1. Logged data is instantly viewable, downloadable, and shareable with Fluke Energy Analyze Plus software so you never need to wait to finish a session before reviewing results or analysing data.

ESS Code: HANL.23

speed voltage transient capture with 20 MHz sampling rate
Automatic recording of over 500 power quality parameters
User-friendly interface with guided setup
Integrated Wi-Fi and Bluetooth connectivity
Three-phase measurement capability
Compatibility with flexible current probes
Robust design suitable for industrial environments
Comprehensive data analysis and reporting tools

Measurement Range: 1000 V AC/DC
Current Measurement Range: Up to 6000 A with appropriate probes
Sampling Rate: 80 kS/s at 50/60 Hz; 20 MS/s for transient capture
Bandwidth: DC to 30 kHz for power quality measurements; DC to 1 MHz for transients
Resolution: 24-bit synchronous sampling
Total Harmonic distortion up to the 50th
Current Inrush Measurement
Input Impedance: 11 kΩ
Interfaces: Ethernet (1 Gbit/s), USB Type-A and USB-C, Wi-Fi/Bluetooth module

Technical Document

Fluke 1777 Datasheet

Download

Fluke 1777 Power Quality Analyser
Four flexible current probes
Flat cable voltage test lead (3-phase + N)
Alligator clips (black and green)
USB-C cable (1m)
Line cord
Wi-Fi/Bluetooth module
Rolling hard case
Instruction manual
Calibration certificate

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Can the Fluke 1777 capture high-speed voltage transients?

Yes, the Fluke 1777 has a 20 MHz sampling capability to capture high-speed voltage transients.

How does the automatic measurement capture benefit users?

It ensures that over 500 power quality parameters are recorded automatically, reducing manual setup and potential errors.

What connectivity options does the Fluke 1777 offer?

The analyser features Ethernet, USB Type-A and USB-C ports, and integrated Wi-Fi/Bluetooth modules for versatile data transfer options.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Fluke 1777 Power Analyser

hire Price

ESS Code: HANL.23

£0.00

Rates exclude VAT and Damage Waiver

£0.00 Ex. VAT

Qty

On Hire Date

Off Hire Date

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Frequently Hired Together

Fluke 1777 Power Analyser

HANL.23

Qty

£0.00

Hire Now

Megger MFT1741+ Multifunction Tester

Qty

£0.00

Hire Now

Fluke 289 Multimeter (TRMS) Logging

Qty

£0.00

Hire Now

Total Combined Hire Price

£0.00 per week

Rates exclude VAT and Damage Waiver

£0.00 Ex. VAT

On Hire Date

Off Hire Date

Minimum hire period: 5 days

Please note you will be charged for the minimum hire period if your order is for a period less than this.

Key Product Features

The Fluke 1777 was designed to be safe and easy to use in any measurement environment.
The ‘PQ Meter’ function gives you immediate access to live on screen data in the field so you can quickly identify potential problems while troubleshooting.
Applications includes Energy surveys and load testing. Harmonic surveys . Nuisance circuit breaker tripping. And more.
Compliant to international standards.
