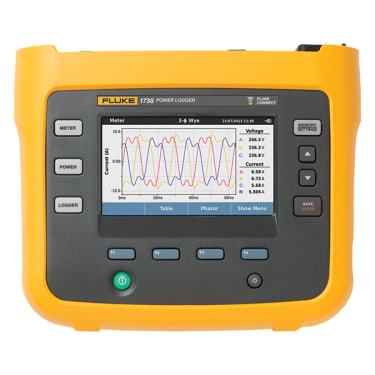

Fluke 1736 Three-Phase Power Energy Logger (PEL)

Overview

The Fluke 1736 is an easy-to-use Three-Phase Power Logger designed for use in a variety of applications including energy assessments and voltage and current event capture.

This innovative instrument has been built with the Fluke Connect® mobile app and desktop software which allows users to maintain safe working distances whilst making critical decisions in real-time, therefore reducing the requirement for expensive protective equipment and time-costing site visits and check-ins.

ESS Code: HANL.16

Capable of measuring all three phrases and neutral with the included flexible current probes
Comprehensive logging – more than 20 separate logging sessions can be stored at one time
Capture dips, swells and inrush currents including event waveform snapshots and high result ion RMS profiles
Bright, colour touchscreen allowing users to conveniently display data on the graphical display
Optimised user interface
Complete “in-field” set-up through the front panel or the Fluke Connect® app

Voltage range:

100 V to 500 V using safety plug input when powering from the measurement circuit

100 V to 240 V using standard power cord (IEC 60320 C7)

Power consumption: Maximum 50 VA (max. 15 VA when powered using IEC 60320 input)
Efficiency: ≥ 68.2% (in accordance with energy efficiency regulations)
Maximum no-load consumption: < 0.3 W only when powered using IEC 60320 input
Mains power frequency: 50/60 Hz ±15%
Battery: Li-ion 3.7 V, 9.25 Wh, customer-replaceable
On-battery runtime: Four hours in standard operating mode, up to 5.5 hours in power saving mode
Charging time: < 6 hours
Resolution: 16-bit synchronous sampling

Technical Document

Fluke 1736 Datasheet

Download

Fluke 1736
Power supply
Voltage test leads
Alligator clips
12 in 1,500A flexible current probe
Soft carrycase
Line cords
Colour coding set
Documentation on USB

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

What is a power data logger (PEL)?

A power logger provides the most accurate and convenient way to measure electricity usage. By tracking the usage, it is possible to identify malfunctioning areas within your establishment to make the necessary repairs.

How do I use Fluke 1736 Power Energy Logger?

The Fluke 1736 comes with easy to connect voltage leads which can be used to connect directly to the circuit in question. The product also come with leads with magnetic probe tips that can attach to the breaker of the circuit you measuring.

Do I need to have the Fluke 1736 connected to mains power to run an energy log?

No, if mains power isn’t available, it is possible to run the Fluke 1736 off power off the measured circuit so you don’t have to search for power outlets or run extension leads to the measurement site.

How can I extract data from the Fluke Power Energy Logger?

Accessing data is simple. You can access data locally by downloading the Fluke Connect mobile app or directly onto your desktop PC where you can view the data in multiple different forms in an easy to digest manner.
