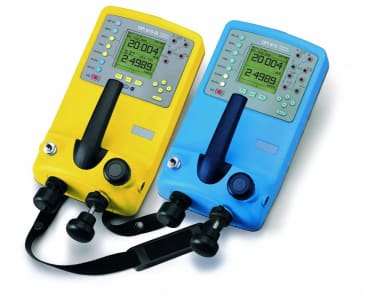

DRUCK DPI 610 -1 to 2 Bar IS Pressure Calibrator

The Druck DPI 610 and DPI 615 series Pressure Calibrators have been designed for ease of use whilst meeting a wide range of application needs including calibration, maintenance and commissioning. The Intrinsically Safe versions are certified to European and North American standards for use in hazardous areas. The dual parameter display shows the INPUT and OUTPUT values in large clear digits. A unique integral handle provides a secure grip for on-site use in addition to a shoulder strap which is also designed to allow the instrument to be suspended for hands-free operation.

The Druck DPI 610 and DPI 615 Pressure Calibrators are self-contained, battery powered Calibrators which contain a pressure generator, fine pressure control, vent, output measurement capabilities, as well as facilities for 4 to 20 mA loop testing and data storage (DPI 615). The rugged weatherproof design is styled such that the pressure pump can be operated and test leads connected without compromising the visibility of the large dual parameter display.

ESS Code: HPCL.14

  • The Druck DPI 610 and DPI 615 Pressure Calibrators have a sealed tactile elastomeric keypad which includes TASK button for different type of tests that can be carried out.
  • The dedicated TASK key gives direct access to the TASK menu. Select the required test, for example P-I for a pressure transmitter, and with a single key press, the calibrator is ready.
  • Use the ADVANCED mode for custom tasks and add to the USER TASK menu for future use. When selecting basic mode the calibrator is configured to source pressure and measure mA or V, with all non-essential keys disabled.
  • With a Set up key to determine default working parameters. Automatic zero correction for any input or output parameter.
  • Unique integral handle with compliant finger grip Pressure input/output test point Volume adjuster for fine pressure control Combined pressure/vacuum pump.
  • A release valve allows controlled pressure venting, and a rotating selector converts the pump to pressure or vacuum.

  • Accuracy: 0.025% FS for ranges 70mbar to 700mbar
  • Two way PC communication for transferring procedures and results. Remote pressure sensors: Up to 10 digitally characterised sensors per calibrator.
Technical Document

DRUCK DPI 610

DRUCK DPI 610

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

DRUCK DPI 610 -1 to 2 Bar IS Pressure Calibrator

hire Price

ESS Code: HPCL.14
£120.00 Weekly

Rates exclude VAT and Damage Waiver

£120.00 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Key Product Features

  • The Druck DPI 610 and DPI 615 Pressure Calibrators have a sealed tactile elastomeric keypad which includes TASK button for different type of tests that can be carried out.

  • The dedicated TASK key gives direct access to the TASK menu. Select the required test, for example P-I for a pressure transmitter, and with a single key press, the calibrator is ready.

  • Unique integral handle with compliant finger grip Pressure input/output test point Volume adjuster for fine pressure control Combined pressure/vacuum pump.

  • With a Set up key to determine default working parameters. Automatic zero correction for any input or output parameter.
