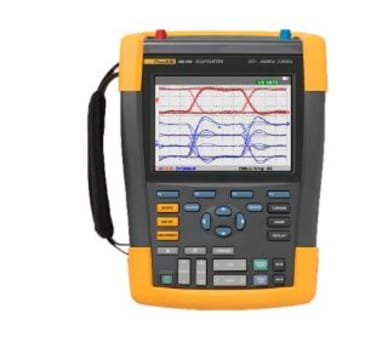

Fluke 199CS 2 Channel Scopemeter (200MHz)

The Fluke 190 202 is a full colour dual readout 2 channel oscilloscope. With a bandwidth of up to 200Mhz and large storage capability. The Fluke 190 series scopemeter has three main modes of viewing data. The 190 can be set for Recorder roll mode for either single sweep, continuous, start-on-trigger or stop-on-trigger. In Oscilloscope mode the 190 acts as a standard oscilloscope.

In meter mode the Fluke 190 displays information in digital format acting as a multimeter. Input is up to 1000V TRMS, with lower ranges selectable from 500mV. Utilises the FlukeviewTM software for data analysis

ESS Code: HSCO.4

• 2 Channel
• 200MHz bandwidth
• Input up 1000 V TRMS
• Sample rate of 2.5 Gig/ sec
• Three operating modes
• Large memory storage capacity
• Save up to 30 waveforms plus 10 recording memories plus 9 screen copy memories
• Full colour graphical display


• Voltage Range: Up to 1000 V TRMS
• Accuracy: from ± .5%  + 5 counts to 2.5% + 15 counts
• Display: 153 mm full colour LCD Display with backlight
• Computer connection: USB  or external flash drive
• Line Power: Mains adaptor/battery charger. Built-in double capacity Li-Ion battery
• Dimensions: 265 x 190 x 70 mm
• Weight: 2.1 kgs


• Carry Case
• BNC Connection leads
• 4mm Connection leads
• Calibration Certificate
• Instruction Manual


Lead time: 1 days
