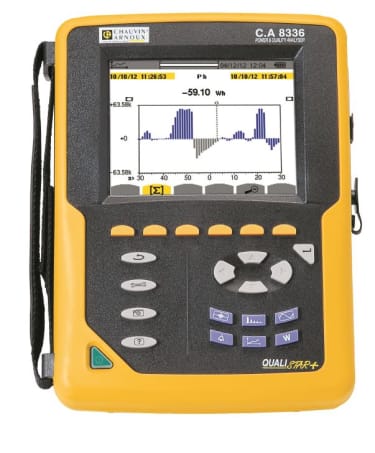

Chauvin Arnoux Qualistar 8336 Three-Phase Power Analyser

The Chauvin Arnoux CA8336 Qualistar captures & records all electrical three phase parameters, transients, alarms & wave forms simultaneously. Providing a snapshot of electrical network quality characteristics. It is easy to handle & precise, with equipment functions making them the ideal instruments for preventative or corrective maintenance.

Designed for Electrical inspection and maintenance the CA8336 can provide a snapshot of the main electrical network quality characteristics. Easy to handle and precise, these instruments also offer a large number of calculated values and several processing functions.

 More than 450 recordable values with all the required parameters and graphic display. Programmable recording period and storage rate. In Transient mode it can capture events on the voltage and current with triggering according to thresholds. Up to 40 alarms can be set simultaneously. For each alarm threshold overrun, a time/date-stamped recording of the event is made with the duration and the extreme values. Can monitor the Inrush current for a load when it is powered up, and records the currents, voltages and frequency.

ESS Code: HANL.17

  • Designed to cover all 600 V CAT IV and 1000 V CAT III applications in compliance with the IEC 61010 safety requirements, and IEC 61000-4-30 Class B standard for how power quality should be measured
  • Five voltage, four current inputs, up to 1000V True RMS. Frequency 40 Hz to 69 Hz
  • Power values W, VA, var, VAD, PF, DPF, cos φ, tan φ Energy values Wh, varh, VAh, VADh Harmonics THD to 50th Harmonic
Technical Document

Chauvin Arnoux Qualistar 8336 Datasheet

Chauvin Arnoux Qualistar 8336 Datasheet

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Chauvin Arnoux Qualistar 8336 Three-Phase Power Analyser

hire Price

ESS Code: HANL.17
£249.00 Weekly

Rates exclude VAT and Damage Waiver

£249.00 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Key Product Features

  • Designed to cover all 600 V CAT IV and 1000 V CAT III applications in compliance with the IEC 61010 safety requirements, and IEC 61000-4-30 Class B standard for how power quality should be measured.
