Hilti PS 1000 X-Scan System

Overview

The Hilti PS 1000 X-Scan is an advanced concrete scanning system that provides precise locating applications for metal and non-metal objects inside of concrete. Enabling operators to view real-time accurate generated images of concrete structures from the inside. The PS 1000 X-Scan system uses X-ray technology to locate rebar, glass-fibre cables, or electrical wiring, while the compact design facilitates easy operation and manoeuvrability. Reducing drilling through concealed objects when drilling anchor holes and through holes.

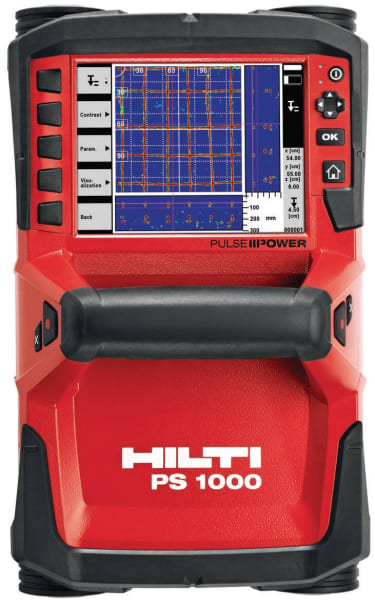

The hand held detection device is comprised of three main components. The hand-guided scanner that measures all essential structural information, full colour display monitor producing clear internal structural images, and finally a portable monitor unit providing on-site image evaluation and data management operating on professional PC software. Whilst scans can be analysed immediately on the state art X-Scan integrated display.

ESS Code: HSCM.14

Quality assessment of rebar and PT cable layout
Inspection of floors, decks, slabs, balconies, etc.
Helps identify safe spots to drill, core or saw
Analyze and evaluate scanned data for detailed report generation
Locates various objects up to 12 inches in concrete
Compact all-in-one hand-held scanner
2D and 3D visualization of objects concealed in concrete structures
Protection class: IP 54, battery IP 56

Max. depth (in) for determining object localization: 12 in
Localization accuracy: +/- 0.5 in
Operating temperature: 5 to 122 °F
Battery life with Li-Ion battery: 4 h (scanner only)
Scanner dimensions: 12.5 x 5.6 x 7.5 in
Scanner weight: 5.4 lb (including battery

Technical Document

Hilti PS 1000 Datasheet

Download

Hilti PS21000 Charger
Hilti PSA200 Charger
Hilti PSA 200 Tablet
PSA 1000 Chart x 5
Hilti Yellow Hazard Tape
Marker Pen Set
Allen Key
PS1000 Headphones
PS1000 USB Software & Instruction Manual Stick
Comms Lead
PSA USB Comms Lead
SD Card
SD Card Reader
Brush
Calibration Certificate

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

How does the Hilti PS 1000 X-Scan System work?

The Hilti PS 1000 X-Scan system uses x-ray technology to locate objects such as, rebar, glass-fibre cables, or electrical wiring, to create a visual representation on the display attached. Enabling users to avoid drilling through important structural or electrical components.

What is the range of the Hilti PS 1000 X-Scan System?

Hilti PS 1000 X-Scan System range can detect and locate up to a depth of 40cm

How accurate is the Hilti PS 1000 X-Scan System?

< 4 in: +/- 0.5 in

> 4 in: +/- 15% in

How user-friendly is the Hilti PS 1000 X-Scan System?

The Hilti PS 1000 X-Scan system has three built in scanning modes, simplicity is one of the key features of this concrete scanning system. Operators simply place the unit on the wall with the scan mode pre-selected, click the start button, and an image will begin to render, showing the location of rebar, glass-fibre cables, or electrical wiring.

Are there any safety precautions to take when using the Hilti PS 1000 X-Scan System?

Prior to use of ground or wall-penetrating radar equipment, the user should check that there are no sensitive radio sites/systems in the near vicinity (airfields, radio astronomy sites, etc.). If such sites are present in the vicinity of the location, contact should be made with the operator of the site in order to reach agreement about use of the ground or wall-penetrating radar equipment before beginning scanning.
