Hilti HAT 28M (Master) Anchor Tester Kit

Overview

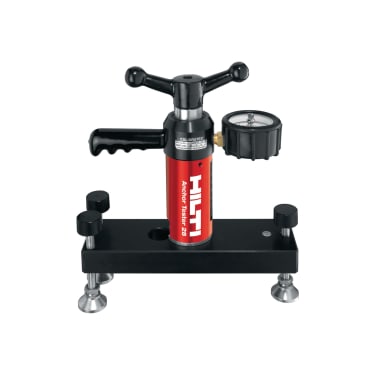

The Hilti HAT 28 M Anchor test kit is a system designed for pull testing and proof loading fastenings. This Anchor Tester, also referred as a pull-out tester consists of the Hilti HAT test unit itself with an integral hydraulic load cell, measuring the load applied. As well as two quick release manometer gauges 0 -5kN and 25kN, accompanied by a range of accessories to allow pull testing on a vast variety of fastenings.

These accessories include slotted button adaptors for bolts, stud-compatible button adaptors, load indicator, threaded rods, stud adaptors, and a ring bolt adapter clevis for ring bolt connections needed to be made fast. If necessary, connections are also offered for wall ties, insulation, and tiny screws. The accessories included ensure the correct tension is applied to the anchors.

The 28 M Hilti HAT is suitable for proof loading of specific test loads to anchors set in various materials, whilst also performing pull-out tests determining pull-out resistance of anchors as well as DX fasteners, pins, and studs in test labs or on site.

ESS Code: HANC.1

0-5kN & 25kN Quick release gauge
Compact and easy to use
Stored in rigid Hilty carrying case

Includes the tester with 5kN and 25kN quick-release gauges
Gauge accuracy: ± 2.5 %
Maximum tensile stroke: 50.0 mm
Dimensions: 332 x 76 x 345 mm
Weight: 4 kg

Technical Document

Hilti HAT Datasheet

Download

1x 0-5kN C HAT 28 Manometer assy
1x 25kN C HAT-28 Manometer assy
1x M6, M8, M10, M12, M16 Set of screws
1x HAT 28 Extractor clamp assy
1x 0-29mm Adjustable end wrench
1x 2,5mm Allen wrench
2x M4X30 Hex skt hd cap screw
1x , Einmaul SW10 Flat wrench
1x , Einmaul SW17 Flat wrench
1x HAT 28 01 Anchor tester

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

What is an anchor pull test?

A pull test determines the correct anchoring system is correct for the project on hand by testing the resistance of a base material. Pull tests can be destructive in which you test to failure, or It can be used to test a proof load in which it is a non-destructive test.

How do you perform an anchor pull test with the Hilti HAT 28 system?

1. The load distribution bridge is already mounted on the tester. For HAP 2.5 tests, secure the HAP 2.5 load distribution bridge. Be sure to use longer screws (40 mm) to secure this bridge.

2. Select the appropriate attachment for the fitting.

3. Pass the adapter through the bridge and engage the head centred in the loading claw foot of the tester.

4. Turn the tester to a position in which the pressure gage is easy to read.

5. Adjust the length of the threaded legs to have all three legs in contact with the supporting surface and have the pull-out movement along the axis of the fastener and parallel to the threaded legs.

6. Set the red pointer of the gage to zero. Hold the tester by the grip while increasing the load on the fastener by turning the crank clockwise.

7. Increase the load until the minimum specified load is attained.

8. To relieve the load on the fastener, turn the crank counter-clockwise and push it down until the original state is reached.

9. Now remove pull-out tester and adapter.

Why do we do pull out test on concrete with the Hilti HAT 28?

It is a very important test for safety, performing tests on any fixings that are fitting to concrete are done so to confirm that they are secure, reliable and strong.

Can I hire Hilti HAT 28 M anchor test systems?

Yes, ESS are a leading hire specialist for test and measurement equipment in the UK. You can hire the Hilti HAT 28 M anchor test system for as little as a week up to several years, available from any of our 19 locations across the UK.

Where can I calibrate Hilti HAT 28 M anchor test systems?

All products supplied by ESS can be serviced, calibrated, and inspected at any of our 19 locations across the UK. The Hilti HAT 28 M anchor test system can be inspected at any time by one of our certified equipment specialists.
