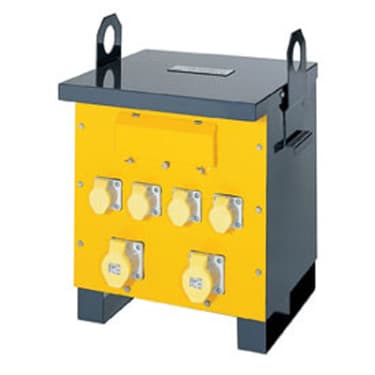

10Kva Site Transformer 415v Supply /110V

These transformers come in both single phase and three phase configurations, with a range of socket options on the front plate, all of which are protected by MCBs (Miniature Circuit Breakers). The MCBs provide double pole protection in both the primary and secondary circuits, conforming to BS3871 standards. The three phase units feature triple pole protection. This ensures the safety of the transformer and the connected devices.

The 10KVA Site Transformer is a portable solution designed to accept a 380~440V 50 Hz 2-phase input through a 25mm cable. It is fully protected by 2 x 16A Double Pole MCBs and 2 x 32A Double Pole MCBs, safeguarding both the input and output circuits. The transformer has a continuous rating of 10kVA, allowing for a consistent and reliable power supply. It also features 4 x 110V 16A and 2 x 110V 32A output sockets, designed according to BS 4343 standards, providing versatile options for connecting various tools and equipment. With its epoxy coated steel enclosure, the transformer offers IP23 protection, ensuring resistance to the ingress of solid objects and providing durability in challenging site conditions.


ESS Code: HTFR.4

• Robust design withstands demanding construction conditions.
• Sturdy cases, handles, and skids for durability and portability.
• Compliant with IP44 and BS3535 standards for construction safety.
• Available in single phase and three phase configurations.
• MCBs provide double pole or triple pole protection for circuits.
• Accepts 380~440V 50 Hz 2-phase input through 25mm cable.
• Fully protected by 2 x 16A and 2 x 32A Double Pole MCBs.
• Versatile output sockets (4 x 110V 16A, 2 x 110V 32A) conforming to BS 4343.


• Rating: 10KVA (10,000 Watts)
• Supply Voltage: 415V (input), 110V (output)
• Construction: Sturdy cases with welded carrying handles and skids
• Compliance: IP44 and BS3535 standards
• Configurations: Available in single phase and three phase
• Socket Options: Multiple socket options on the front plate
• Circuit Protection: MCBs (Miniature Circuit Breakers) provide double pole protection for primary and secondary circuits (BS3871 standards for single phase, triple pole protection for three phase)
• Input: 380~440V 50 Hz 2-phase
• Cable Size: 25mm
• Output Sockets: 4 x 110V 16A, 2 x 110V 32A designed to BS 4343 standards


Lead time: 1 days
