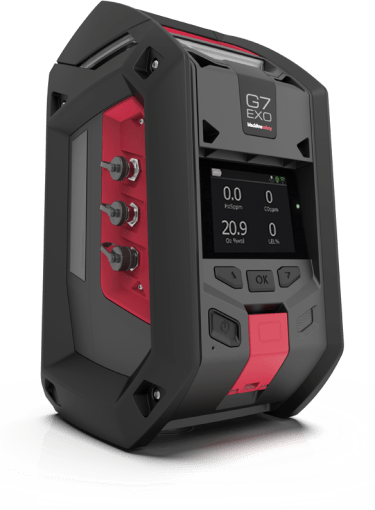

Blackline EXO Area Gas Monitor

Providing the next level of Area Gas Monitoring, the Blackline EXO offers automated data collection with two way communication to give you the full picture of your site.

The era of area monitoring systems that couldn't reliably and strongly connect to one another is passed. You only need to switch on G7 EXO to start using integrated connectivity to start sending environmental data to the Blackline Safety Cloud. In a single, user-friendly platform, EXO provides thorough, robust area monitoring as a part of a wider linked ecosystem.


Powering automated data collection and two-way communication, with G7 EXO, you have the full picture of where your area monitors are deployed, their real-time status and which team members are working in the area. Advanced analytics capabilities summarize your data so you can address employee safety hazards or facility maintenance risks before they become a problem.


ESS Code: HPGD.200

  • 100+ day run time in standard operating configurations
  • 360º diffusion gas detection
  • 4G cellular connectivity with an optional satellite module, every G7 EXO works nearly anywhere in the world
  • Seamless integration with Blackline Safety Cloud and any number of G7 wearables
  • Push-to-talk works like a walkie-talkie with 100 channels
  • Four-channel pump module for multi-area monitoring
  • Remotely sample up to four confined spaces or remote locations sequentially, with up to 30m (100 feet) of tubing.
  • Automated usage and compliance reporting
  • Rugged exterior stands up to the harshest conditions
  • Integrated GPS and location beacon capability Drop and go units that connect to the rest of your network wherever they’re placed


Gas cartridge features
High gas alert
Low gas warning alarm
Under limit (UL)
Over limit alerts (OL)
Bump test and calibration notification
Bump test and calibration failure
Functional settings
SOS latch: Pull latch to trigger SOS alert
Low-battery: Configurable threshold
Connection lost: Configurable threshold
Two-way messages: Custom messages and 10
preconfigured sent to monitoring personnel
Maintenance code: Configurable 4 digit
Push-to-talk: Send and receive voice messages to
other G7 devices
Size & weight
Material: Rugged housing built from aluminum,
plastic
and rubberized bumpers
Size: 385 mm x 188 mm x 220 mm (15.1” x 7.4” x 8.7”)
Weight: 12.25Kg 27 lbs
User notification
Green connectivity light: Blinking (powered),
continuous (connected)
360-degree visible yellow and red lights
Yellow light: Warning alarms
Red light: Alerts
Blue LiveResponse™ indicator light: Confirmation
that
a monitoring team has acknowledged an alert
Cellular wireless radio
Wireless coverage: 100 countries, 200 wireless carriers
North America: 3G/4G radio; 3G UMTS bands 2 and 5;
4G bands 2, 4 and 5
International: 2G/4G radio; 2G GSM bands E-GSM and
PCS; 4G bands 3, 7 and 20
Asia Pacific: 3G/4G radio; 3G UMTS band 1; 4G bands
3, 8 and 28
Antenna: Internal
Satellite module
User-upgradable satellite module allows EXO to
connect to the iridium satellite network for remote
areas outside of cellular connectivity
Optional module: Yes
Network: Iridium, global coverage
Radio: 1621 MHz, 2 Watts
Antenna: Internal
Four-channel pump
Optional module: Yes
Number of pump channels: 4
Sampling period per channel: Adjustable
Tubing length per channel: Up to 30 m (100 ft)
Size: 18x9.5x8 cm (7x3.7x3.1 in)
Weight: 272 g (0.6 lb)
Power & battery
Rechargeable battery capacity: 144 Ah (LiFePO4)
Battery life in diffusion mode: 100 days at 20°C (68°F),
LEL-IR, H2S, CO and O2 configuration
Battery life in pump mode: 30 days at 20°C (68°F)
Charge time: ~12 hrs
Charge temp.: 0°C to 45°C (32°F to 113°F)


Blackline EXO Area Gas Monitor
Charger
Carry Case
Exo Standard Gas Cartridge
User Guide


Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Blackline EXO Area Gas Monitor

hire Price

ESS Code: HPGD.200
£159.00 Weekly

Rates exclude VAT and Damage Waiver

£159.00 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.
