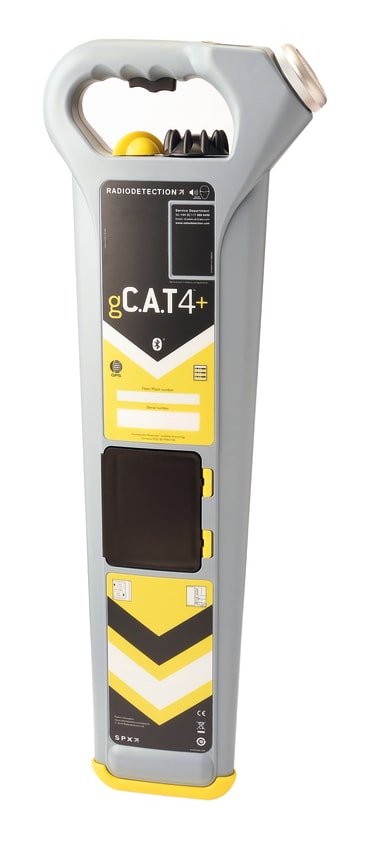

Radiodetection gCAT4+ Cable Avoidance Tool

The gCAT4+ is the latest in the CAT4 series of cable avoidance equipment from Radiodetection offering top-of-the-range functionality for users.

The gCAT4+ is the latest in the CAT4 series of cable avoidance equipment from Radiodetection. Building on the functionality of the eCAT4+, the gCAT4+ adds features such as SWING Warning, GPS tracking and depth estimation.

The CAT4 series of cable avoidance tools from Radiodetection is designed to find buried utilities faster. With the gCAT4+ the user has the ability to detect radio, power and Genny signals in a single scan and gauge their depth in the ground.

The gCAT4+ includes enough memory to store more than a year’s worth of measurements and operation modes,alongside the in-built GPS receiver which provides positional data logging to show exactly where the operator was working when the data was recorded. The information recorded can then be exported in CSV, XLS or KML file types and used with map services such as Google Earth.

For the ideal Cat and Genny pairing, pair the gCAT4+ with the Radiodetection Genny4 to enchance the cable location abilities of the gCAT4+ and work over increased distance and depth.

ESS Code: HCAT.52

  • Built in GPS
  • Data Logging
  • SWING Warning
  • StrikeAlert
  • CALSafe
  • Service Due Indicator
  • Bluetooth
  • Depth Estimation
  • Dynamic Range - 120dB @ 10Hz
  • Dynamic Overload Protection - 40dB @ 50hz (automatic)
  • Locate Accuracy - ±10% of depth
  • Depth Accuracy  - Line: 5% 0.1m to 3m (4in to 10ft)
  • (on undistorted signal with no adjacent signals) - Sonde: 5% 0.1m to 7m (4in to 16ft)
  • Horizontal GPS Position Accuracy - 3m CEP (Circular Error Probable)
  • Operating Temperature Range - -20 to 50°C
  • Storage Temperature Range - -20 to 70°C
  • Environmental Protection - IP54
  • Batteries - 2 x LR20 (D) 1.5V alkaline
  • Compatible with D type NiMH rechargeable batteries
  • Data Interface - USB 2.0, Bluetooth®
  • Recommended Service Interval  - 1 Year
  • Warranty - 12 months from purchase
  • Data Storage Capacity - 2 GB
  • Calibration Due Warning  - Countdown from 31 days before use
Technical Document

Radiodetection gCAT4+ Datasheet

Download the Radiodetection gCAT4+ Datasheet
Technical Document

Radiodetection gCAT4 Product Overview Document

Download the Radiodetection gCAT4+ Product Overview Document

gCAT4+ Cable avoidance Tool

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Radiodetection gCAT4+ Cable Avoidance Tool

hire Price

ESS Code: HCAT.52
£19.95 Weekly

Rates exclude VAT and Damage Waiver

£19.95 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Frequently Hired Together

Radiodetection gCAT4+ Cable Avoidance Tool
Radiodetection Genny 4 Signal Generator
Cobra Wheel 60m 6.7mm Rodding System

Radiodetection gCAT4+ Cable Avoidance Tool

HCAT.52
1
£19.95 Weekly
Hire Now

Radiodetection Genny 4 Signal Generator

1
£20.14 Weekly
Hire Now

Cobra Wheel 60m 6.7mm Rodding System

1
£40.00 Weekly
Hire Now

Total Combined Hire Price

£80.09 per week

Rates exclude VAT and Damage Waiver

£80.09 Ex. VAT

Minimum hire period: 5 days

Please note you will be charged for the minimum hire period if your order is for a period less than this.

Frequently Purchased Together

Radiodetection gCAT4+ Cable Avoidance Tool
Survey Flags
Cobra Wheel 60m 6.7mm Rodding System

Radiodetection gCAT4+ Cable Avoidance Tool

80.1139
1
£1,605.00 Each
Buy Now

Survey Flags

1
£16.50 Each
Buy Now

Cobra Wheel 60m 6.7mm Rodding System

1
£40.00 Weekly
Hire Now

Total Combined Purchase Price

£76.45

Rates exclude VAT and Damage Waiver

£76.45 Ex. VAT

How to use Guide

Marketing Cookies must be enabled to view third party videos

Key Product Features

  • Built in GPS

  • Data Logging

  • Depth Estimation

  • Bluetooth
