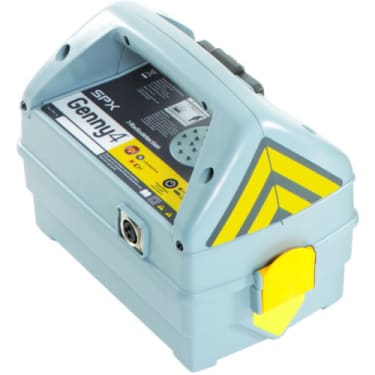

Radiodetection Genny 4 Signal Generator

The Radiodetection Genny4 emits a class-first simultaneous dual-frequency signal output design and when paired with the gCAT4+ enhances the detection of buried pipes and cables.

To help the user locate smaller cables such as street lighting and telecoms, the Genny4 introduces a second frequency to work alongside the standard 33KHz locator signal.
The new signal boost function increases the output signal of the Genny4 by up to 10 times, allowing the signal to travel further and penetrate deeper into the ground to detect hidden utilities with ease.
Housed in a sturdy storage case with internal storage to hold connection cables, clips, signal clamps, sonde or the live plug connector.
The Genny4 is fully backwards compatible meaning all Genny3 accessories will work with the new model.

ESS Code: HCAT.41

  • Dual Frequency Output
  • Signal Boost Function
  • 12 Month Warranty
  • Batteries – 4X LR20 1.5V Alkaline


Technical Specifications of the Radiodetection Genny 4 Signal Generator
Maximum output voltage - 23V RMS into an open circuit
Maximum output current - 66mA RMS into a Short circuit
Maximum output power - 1 Watt in Direct Connection Mode
Induction output - Magnetic flux Density (B) 1.089 µT @ 500mm
Output Signal Level - Selectable Standard or Boost Mode
Audio output - Standard and Mute options
Power Options - Alkaline or NiMH – requires 4 off D type cells
Battery Life - 40 hours continuous in standard mode or 15 hours continuous in Boost mode using Direct Connection Method
28 hours continuous in standard mode or 9 hours continuous in Boost mode using Induction method
Weight - 2.75kg (6lbs) with batteries and tool tray fitted
Dimensions - 27.5cm (10.8”) x 17cm (6.7”) x 20cm (7.8”)
Ingress Protection Rating - IP54
Audio Option - Built-in water-resistant speaker
Operating Temperature - -20°C to 50°C / -4°F to 122°F
Storage Temperature - -40°C to 70°C / -40°F to 158°F
External Connection - XLR type for connection of direct connection lead, transmitter clamp and accessories


Technical Document

Radiodetection Genny 4 Signal Generator Overview

Download
Technical Document

Radiodetection Genny 4 Signal Generator Data Sheet

Download
