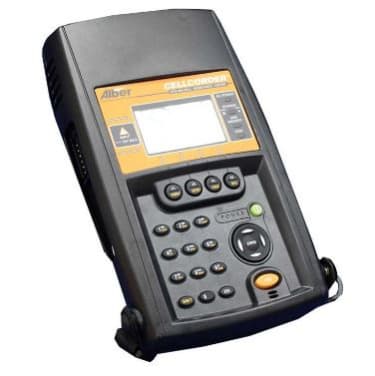

Alber Cellcorder Battery Resistance Tester

The Alber CRT-400 Cellcorder can provide vital information on battery back-up cell systems, ensuring the back-up system will function correctly if and when called into use. Single cell or multicell arrays can be tested with ease. Up to 7 strings of 256 cells each or 28 strings of 64 cells can be analysed and recorded. Adding in Specific Gravity and Cell Temperature can give a complete picture of Battery system health. This information can be easily transferred to a PC for record keeping and retrieval for reporting purposes

ESS Code: HBTE.1

• Carry out health checks on float voltage
• Records internal cell resistance
• Records intercell connection resistance
• Patented Internal Resistance measurements can detect degrading cells before they create failure issues
• Other cell information can be added manually to give a full picture of cell health status
• Information can be stored and downloaded for storage, and comparison to previous results to ensure cell system integrity is maintained
• Battery Analysis software can identify problem cells, create reports and archive data

Voltage Input:
Up to 16V in 4 steps
Test Current:
Up to 5 A to 50 A in 4 steps
Display:
LCD-STN Reflective with White LED Backlight
Memory:
USB Flash drive, with storage capability of 71 strings of 256 cells
Dimensions:
305mm x 178mm x 76mm
Weight:
1.5kgs
Power:
4 cell 8800 mAh Lithium Ion @ 4.2 V.8 Hr charge time. Also AC Adaptor. Input 90-264 VAC


• Hard Carry Case
• USB Flash Memory Drive
• USB Maintenance Interface
• Test Lead Set
• AC Power Adaptor
• Voltage Lead Set
• Short Spike connectors x 2
• Long Spike connectors x 2
• Carry Strap
• Software
• User Guide
• Calibration Certificate

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.
