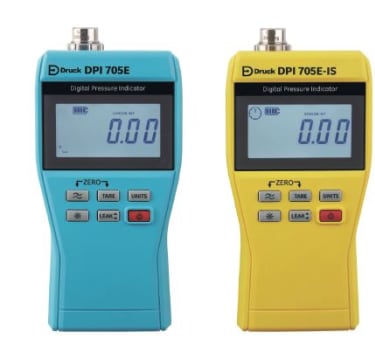

Druck DPI 705E IS 2 Bar Pressure Indicator

Druck DPI705E Intrinsically safe Pressure Indicator. With bigger display and rugged case. Ranged -0.95 to 2 Bar Gauge, the DPI705E also has a Leak Test function, min/max, tare, pressure alarm and zero pressure correction added as standard.


The Baker Hughes Druck DPI 705E IS Pressure Indicator supersedes the popular DPI 705. The DPI 705E has a larger backlit high-contrast display and a tough hand held body with hard carry case for transport supplied. Up to 20 pressure engineering units can be selected. The DPI 705E has some very useful features which make the instrument a very useful and versatile pressure indicator. Leak Test function for determining if there is a leak in a pressure system by recording the pressure over 1, 3 or 5 minutes. Zero pressure correction and immediate indication on power up, with no warm up time required. Tare feature up to 100% temporary zero offset capability by subtracting the current reading from subsequent measurements. Filter function enables a filtered pressure reading by showing a rolling average of the last 10 measurements, useful in displaying a more stable reading in fluctuating, noisy environments. Alarm setting can be programmed for high and low pressure figures with audible and visual alarm when setting exceeded. Min and Max feature displays both the minimum and maximum readings in peak-hold mode. Pressure connection is  G1/8 Female (we can supply a ¼ nylon push in fitting)


ESS Code: HPCL.63

  • Pressure range of -0.95 to 2 Bar G
  • Large backlit high-contrast display
  • Up to 20 selectable pressure engineering units can be displayed
  • Leak test
  • Min/Max feature in peak-hold
  • Filter setting in fluctuating applications for a more stable pressure reading
  • Alarm setting configurable for high and low pressure alarm indication
  • Accuracy of ±0.1 FS

Range:
-0.95 to 2 Bar Gauge. Other engineering units can be selected
Accuracy:
±0.1 FS
Resolution:
5 digit display
Dimensions:
200 x 95 x43 mm
Weight:
563 gs
Power Supply:
4 x AA Alkaline/Nicad/NiMH Cells. Can be used for up to 8 hours a day, 6 days a  week for up to a year on a single set of batteries


Technical Document

Druck DPI 705E IS 2 Bar Pressure Indicator Datasheet

View or download the Druck DPI 705E IS 2 Bar Pressure Indicator Datasheet
Technical Document

Druck DPI 705E IS 2 Bar Pressure Indicator Manual

View or download the Druck DPI 705E IS 2 Bar Pressure Indicator Manual
  • Indicator
  • Hard Carry case
  • Calibration Certificate
  • User manual

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Druck DPI 705E IS 2 Bar Pressure Indicator

hire Price

ESS Code: HPCL.63
£50.40 Weekly

Rates exclude VAT and Damage Waiver

£50.40 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Frequently Hired Together

Druck DPI 705E IS 2 Bar Pressure Indicator
Ametek Jofra CTC 155 Temperature Dry Block Calibrator
Fluke 725Ex Multi Calibrator

Druck DPI 705E IS 2 Bar Pressure Indicator

HPCL.63
1
£50.40 Weekly
Hire Now

Ametek Jofra CTC 155 Temperature Dry Block Calibrator

1
£152.25 Weekly
Hire Now

Fluke 725Ex Multi Calibrator

1
£152.25 Weekly
Hire Now

Total Combined Hire Price

£354.90 per week

Rates exclude VAT and Damage Waiver

£354.90 Ex. VAT

Minimum hire period: 5 days

Please note you will be charged for the minimum hire period if your order is for a period less than this.

Key Product Features

  • Pressure range of -0.95 to 2 Bar Gauge

  • High Accuracy of +/- 0.1% FS (Standard version)

  • Intrinsically safe for use in hazardous area applications

  • 20 programmable pressure ranges built in
