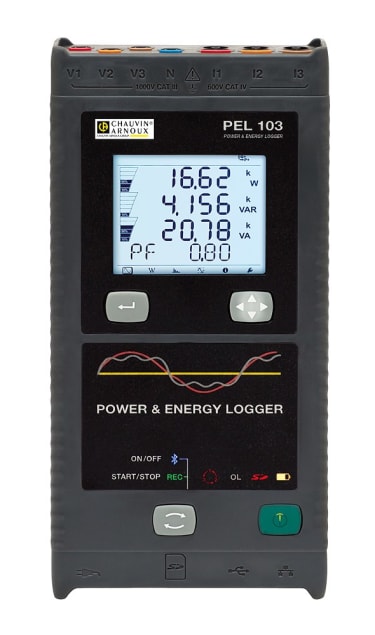

Chauvin Arnoux PEL 103 PQ Analyser

The all in one solution for long/short term energy optimisation and power measurement. The Chauvin Arnoux PEL 103 analyser is a power and energy logger for all electrical installations. Recording every detail of electrical consumption within a system, used either simultaneously with real time data or for historical analysis. Equipped with all essential measurement features needed to provide you with competent supervision of electrical distribution and successful energy efficient projects.

Chauvin Arnoux PEL 103 analysers are an essential addition to any electrical system. The analysers create the measurements by the means of current sensors and voltage inputs, used to view all parameters and take advantage of measuring, energy metering and communications functions. The PEL103 can be easily positioned due to the unit being magnetized, meaning it can be positioned anywhere within any electrical cabinet without causing difficulties once positioned.

ESS Code: HANL.6

  • Automatic identification of linked sensors
  • Connection through Ethernet, USB, and Bluetooth
  • Using SD and SD-HC cards for recording
  • Can perform installations that are single-phase, split-phase, three-phase, with or without a neutral, as well as more intricate combinations.

Voltage up to 1,000 V
Current up to 10,000 A
Voltage ratio: up to 650,000 V
Current ratio: up to 25,000 A
Power from 10 W/var/VA to 10 GW/Gvar/GVA
Energy: up to 4EWh / 4 EVAh / 4 Evarh
Phase: cos φ, tan Φ, PF

Technical Document

Chauvin Arnoux PEL 103 Datasheet

Chauvin Arnoux PEL 103 Datasheet

Carrying bag
4 measurement cables (3m long)
4 crocodile clips
Set of plugs
Mains cable
8 GB SD card
USB cable
SD – USB adapter

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Chauvin Arnoux PEL 103 PQ Analyser

hire Price

ESS Code: HANL.6
£132.00 Weekly

Rates exclude VAT and Damage Waiver

£132.00 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

How to use Guide

Marketing Cookies must be enabled to view third party videos

Key Product Features

  • Automatic identification of linked sensors

  • Connection through Ethernet, USB, and Bluetooth

  • Using SD and SD-HC cards for recording

  • Can perform installations that are single-phase, split-phase, three-phase, with or without a neutral, as well as more intricate combinations.
