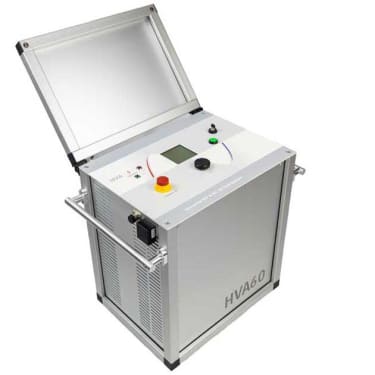

B2 HVA60 VLF High Voltage Test Set
The compact design and unmatchable high voltage output power to weight ratio of the HVA test sets are second to none on the market, and make the b2 electronics high voltage generators very desirable in all classes at all voltage levels.
The B2 HVA60 is a compact and portable VLF test set which determines the condition of medium voltage cables. It performs VLF and DC testing, as well as sheath testing with sheath fault location mode.
On site, no external PC is needed. All results can be later downloaded via USB for further investigation and easy reporting via software tool. The test set has two independent earthing devices (electronic and mechanical discharging) and an integrated 12 kV transient protection system (at 50 Hz) to protect both the operator and the device.
Robust HV connectors allow the use of various HV test lead lengths, quick exchange of a replacement cable, or a simpler upgrade path for connection of diagnostics systems. Whilst the dry-type transformer is practically maintenance free due to no oil or arcing contacts.
ESS Code: HVLF.2
- Pure sinusoidal output voltage (load-independent)
- 12 kV transient protection (50 Hz)
- Dual Discharge Device (DDDTM), integrated electronic and mechanical discharge devices
- Sheath fault pinpointing (in combination with sheath fault locator, not included)
- Breakdown voltage and load detection
- Digital metering of U (rms), I (rms), C, R, and time
- Easily exchangeable HV test lead
- Real time oscilloscope display of output voltage
- Programmable test sequences with a tailor-made software tool
- Download reports from the device via USB flash drive
- Vacuum bottle test
