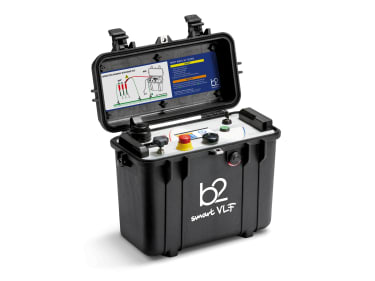

B2 HVA28TD VLF High Voltage Test Set
The ideal solution for testing both VLF and DC testing of medium voltage cables, the HVA28TD high voltage test set provides operators with sheath testing capabilities as well as determining the condition of medium voltage electrical cable lines. Compact and lightweight, B2 electronics’ VLF test set enables quick and efficient testing of high voltage lines.
Rapidly measure and test assets with programmable test sequences with tailor-made software tools, whilst simultaneously download reports to USB flash drive for later analysis and observation, thus eliminating any need for an on-site PC. The dry-type transformer does not include oil or arching contacts making this test set virtually maintenance free.
ESS Code: HVLF.1
- Pure sinusoidal output voltage (load-independent)
- Sheath fault pinpointing in combination with sheath fault locator (not included)
- Easily exchangeable HV test lead
- Safe communication over Bluetooth
- Large color display (4.3")
- Programmable test sequences with a tailor-made software tool
- Download reports from the device via USB flash drive
- USB and Bluetooth data transfer
- Protection class IP67 (with closed lid)
- Dimensions: 417 x 221 x 334mm
- Weight 14kg / 31lbs
Set up an Account
Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.
B2 HVA28TD VLF High Voltage Test Set
hire Price
ESS Code: HVLF.1Rates exclude VAT and Damage Waiver
£504.00 Ex. VAT
Minimum hire period: 5 days
Lead time: 1 day
Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.
Frequently Hired Together
B2 HVA28TD VLF High Voltage Test Set
HVLF.1
Megger Teleflex SX-1
Baur Shirla Sheath Fault Locator
Total Combined Hire Price
Rates exclude VAT and Damage Waiver
£1,889.00 Ex. VAT
Minimum hire period: 5 days
Please note you will be charged for the minimum hire period if your order is for a period less than this.
Key Product Features
Pure sinusoidal output voltage (load-independent)
Sheath fault pinpointing in combination with sheath fault locator (not included)
Easily exchangeable HV test lead
Safe communication over Bluetooth
