Megger TDR2000/3 Dual Channel TDR

Depending on the value of the velocity factor and the cable type, the Megger TDR2000/3/3P Dual Channel Power Plus Time Domain Reflectometers have a maximum range of 20km/ 65 kft. The Megger TDR2000/3/3P Dual Channel Power Plus Time Domain Reflectometers can be programmed to display readings in either metres or feet and have a minimum resolution of 0.1m/ 0.3 ft.

ESS Code: HTDR.3

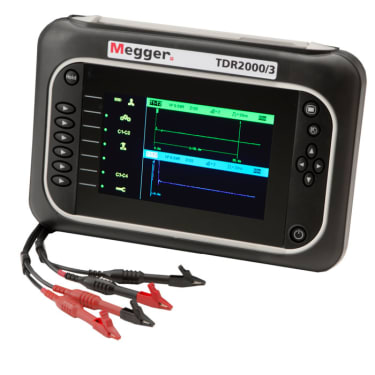

• The Megger TDR2000/3 Dual Channel Power Plus Time Domain Reflectometer is supplied with two pairs of 2m test leads with 4mm shrouded connections to miniature crocodile clips
• Locate faults on metallic paired cables
• Set the velocity factor to a value between 0.2 and 0.99 to accommodate a variety of cable test requirements
• Maximum range: 20 km/ 65 kft (depending on the velocity factor and cable type)
• Minimum resolution: 0.1m/ 0.3 ft
• High resolution, white backlight and user-selectable colour palettes increase the ease and clarity with which key events within the trace can be identified
• Large, backlit, colour, WVGA display


• Range: Up to 20000 m with a minimum resolution of 0.1 m
• Accuracy: ±1% of range ±1 pixel at 0.67 VF [Note - The measurement accuracy is for the indicated cursor position only and is conditional on the velocity factor being correct.
• Resolution: 1% of range
• Input protection: This instrument complies with IEC61010-1 to protect the user in the event of connection to live systems. Rated at 150 V CAT IV, designed for use on de-energised systems and fused leads must be used if the potential voltage between terminals could exceed 300 V
• Output pulse: Up to 20 volts peak to peak into open circuit. Pulse widths determined by range, cable and model used.
• Gain: Set for each range with user selectable steps (in Manual operating mode).
• Velocity factor: Variable from 0.2 to 0.99 in steps of 0.01
• Power down: User programmable auto power off timer 1, 5, 10 mins or never
• Battery    Li-ion rechargeable battery
• Battery charge time: 6 hours at 0 °C to 40 °C
• Battery life: 12 hours typical


• Megger TDR 2000/3
• Carry Case
• Dual Mini-Clamp Test Leads / Dual Fused Test Leads (Depending on selected model)
• User Guide CD
