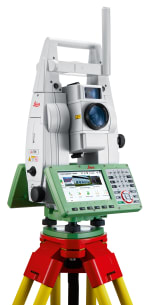

Leica TS13 Robotic Total Station

By pairing with Leica Captivate and CS20 controller, the TS13 is a simple-to-use device providing a comprehensive field-to-office solution in a cost-effective mid-range total station.
You can rest assured you are getting the highest quality and longevity in from your device while keeping overall investment low


ESS Code: SRTS.140

• Automatic target recognition (ATR)
• Leica FlexField software
• Built to last – even after years of use
• Lower investment without sacrificing quality
• 5m – 150m working range
• 8 – 10h battery operating time
• Pairs with Leica Captivate and CS20


• Technical Specifications of the Leica TS13 Robotic Total Station
• Distance Measurement
• Range (prism) - 0.9 m to 3,500 m
• Range (non-prism) - R500 0.9 m to > 500m, R1000 0.9m to >1000m
• Accuracy / measurement time - Single (prism) - 1mm + 1.5mm / typically 2.4 sec, Single (prism fast) - 2mm +1.5mm / typiclly 1.5 sec, Single (any surface) - 2mm + 2ppm / typically 2 sec
• Laser dot size (at 50m) - 8mm x 20mm
• Guide Light
• Working range - 5 - 150m
• Accuracy - Typically 5cm at 100m
• General
• Processor - TI OMAP4430 1 GHz Dual-core ARM® Cortex™- A9 MPCore™
• AutoHeight distance accuracy - 1.0mm (1 sigma)
• AutoHeight distance range - 0.7m to 2.7 m

• Leica TS13 Robotic Total Station
• RH17
• Tribrach
• 2 x GEB222
• CS20 Package
• GRZ4 Prism
• GLS12 Pole
• Rain Cover
• Height Meter
• GKL331 Charger
• Sun Shade
• GKL341 4 slot Battery charger


Lead time: 1 days
