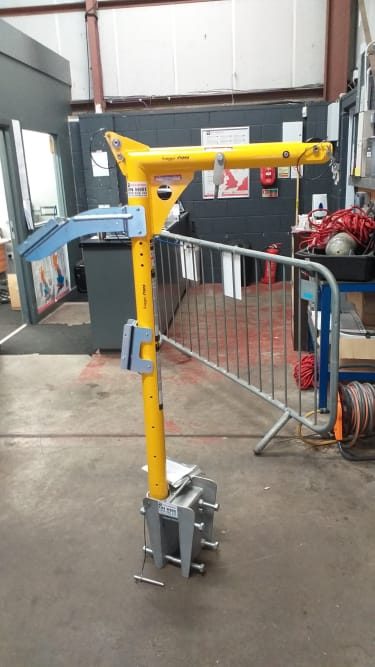

XTIRPA Davit Arm Compact (Sheet) Trench

The lightweight and versatile compact trench system delivered through XTIRPA’s revolutionary engineering. Providing personnel with unmatched fall protection and rescue abilities when working within confined spaces. The XTIRPA’s Compact (Sheet) Trench Davit Arm system comprises three pieces, the base clamp suitable for attaching to trench sheets, winch bracket, and the short reach davit arm that provides reach up to 610mm.

The Compact Trench Sheet Davit Arm System is part of our personal protection equipment range intended to act as a support structure or anchor for use in fall protection, work positioning and rescue within confined spaces. The ideal solution for users requiring access into confined spaces where space and height is particularly restricted.

The XTIRPA Compact (Sheet) Trench Davit System is ideal for work in areas that require regular set-up and teardown and where a base can be affixed to an existing structure. This niche system offers a solution where other systems are not viable. Applications predominately apply within water treatment works, pump houses, filter replacements and works waste.

This system is designed for use on trench structures of a width between 0 and 7.6cm, along with fall arrest blocks, fall arrest winches, and man riding winches.

ESS Code: HDAV.12

  • Lightweight and versatile: The Xtirpa Davit Compact Sheet Trench system is designed to be lightweight and versatile, making it easy to transport and use in various work environments.
  • Unmatched fall protection and rescue abilities: The system provides personnel with exceptional fall protection and rescue capabilities, ensuring the safety of workers when operating in confined spaces.
  • Three-piece construction: The system consists of three main components: the base clamp, winch bracket, and short reach davit arm. This modular design allows for easy assembly and disassembly.
  • Reach up to 610mm: The short reach davit arm provides a reach of up to 610mm, allowing workers to access confined spaces with limited space and height restrictions.
  • Suitable for confined spaces: The Compact Davit Arm Trench Sheet  System is specifically designed for use in confined spaces, acting as a support structure or anchor for fall protection, work positioning, and rescue operations.
  • Ideal for restricted spaces: This system is particularly well-suited for areas with limited space and height, making it an ideal solution for users who require access to confined spaces where other systems may not be viable.
  • Wide range of applications: The XTIRPA Compact (Sheet) Davit Arm Trench System is commonly used in water treatment works, pump houses, filter replacements, and waste treatment works. It can be affixed to existing structures and is compatible with various fall arrest blocks, fall arrest winches, and man riding winches.

Davit Arm Specification

  • Maximum working capacity: 164 kg
  • Weight: 23 kg
  • Length: 61 cm
  • Width: 12 cm
  • Height: 152 cm
  • Material: aluminium
  • Bearing ring: bronze
  • Hardware: zinc plated steel / stainless steel
  • Pulley: black acetal
  • Lanyard: nylon covered stainless steel cable
  • Finish: security yellow
  • Man riding capacity: 136 kg

XTIRPA Davit Arm Compact Trench System Specifications

  • Maximum working capacity: 164 kg
  • Adjustable 0 - 7.6cm
  • Weight: 23 kg
  • Structure: aluminium
  • Sleeve bearing: PVC pipe
  • Hardwear: zinc plated steel
  • Clamping rod: zinc plated steel
  • Reinforcement plates: zinc plated steel
  • Pin: stainless steel
  • Lanyard: nylon covered stainless steel cable


XTIRPA Davit Arm Compact Trench System Specifications

  • Maximum working capacity: 164 kg
  • Weight: 17 kg
  • Plate and gussets: stainless steel
  • Sleeve bearing: PVC pipe
  • Pin: stainless steel
  • Lanyard: nylon covered stainless steel cable
  • Hardwear: zinc plated steel
Technical Document

XTIRPA Davit Arm Compact (Sheet) Trench Product Overview Document

Download the XTIRPA Davit Arm Compact (Sheet) Trench Product Overview Document
Technical Document

XTIRPA Davit Arm Compact (Sheet) Trench Datasheet

Download the XTIRPA Davit Arm Compact (Sheet) Trench Datasheet

XTIRPA Davit Arm Compact Trench System Includes

  • IN-2483 - 61cm fixed davit arm with built-in mast
  • IN-2482 - Adjustable shoring box adaptor
  • A2395-07 - Offset adaptor for winch brackets


XTIRPA Davit Arm Compact Sheet Trench System Includes

  • IN-24
  • Winch Brackets

Lead time: 1 days
