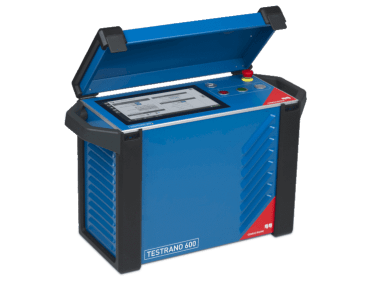

Omicron Testrano 600

Using TESTRANO 600 enables you to perform various tests on power transformers without re-connecting, meaning the TESTRANO 600 cuts testing time down to one third compared to conventional single-phase test sets.

ESS Code: HRPH.102

• True three-phase power transformer test system
• Powerful device with 3 x 33 A DC or 400 V AC
• Reduced connection effort as the same connection can be used for various tests
• Three times faster testing
• Total weight of 20 kg / 44 lbs – ideal for on-site testing


Just three cables are needed to be connected to perform various tests with TESTRANO 600:

• Transformer Turns Ratio
• DC Winding Resistance
• Dynamic Resistance
• Demagnetization
• Short-Circuit Impedance / Leakage Reactance
• Frequency Response of Stray Losses
• OLTC Scan / Dynamic Resistance (DRM)
• Vector Group Check
• Cooldown Test
• Power Losses at Low Voltages

In order to perform power/dissipation, capacitance and exiting current measurements, you can combine TESTRANO 600 with the CP TD12/15 accessory


3 cables, which support a 4-wire (Kelvin) connection, only have to be connected once at the transformer’s terminals. Then all test outputs and measurement inputs are automatically controlled by TESTRANO 600 without the need to change the connection again.
