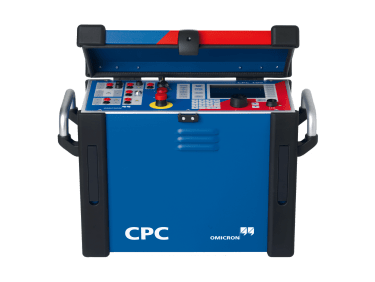

Omicron CPC 100 Universal Primary Injection Test Set

Overview

The compact and versatile universal test system, Omicron’s CPC 100 provides testing capabilities for substation commissioning and maintenance, reducing testing times whilst eliminating the need for multiple testing devices. The CPC 100 is built with high quality components and unmatched routine testing upon manufacturing, enabling the universal primary test set to perform to industry standards for users worldwide. The lightweight and compact design improves all transport, handling, and storage, weighing only 29kg.

The multi-functional CPC 100 is capable of testing several assets such as CT, VT, CB, and power transformers with ease, whilst maintaining the capability to test individual components of an asset. The Omicron CPC 100 provides powerful testing solutions up to 800 A or 2kV, with up to 5kVA over a frequency range of 15 Hz to 400 Hz or 400 A.

ESS Code: HPTS.2

Replaces multiple individual testing devices
Reduces time needed to complete the task
Ideal solution for substation asset commissioning and maintenance
Operable via integrated front panel, or by using the Primary Test Manager laptop software
Single phase wall outlet
CPC 100 is CE tested, fulfills highest safety requirements, tests according to IEEE and IEC standards
Emergency switch-off button
Protective Earth conductor connection check

Provides up to 800 A or 2 kV
Synchronization inputs: V1 AC (V1 AC, V2 AC, I AC)
Input magnitude: 10% of input range full scale
Output magnitude: 5% of output range full scale
Phase tolerance: 0.5° within the limits as specified above
Input impedance: > 100 kΩ
Response time: 1 ms
Frequency (nominal): 50 / 60 Hz
Power consumption: < 3500 VA (< 7000 VA for a time < 10 s)
Dimensions (W x H x D): 18.4 x 15.5 x 9.2 in (468 x 394 x 233 mm)
Weight: 29 kg
Operating temperature: -10 °C to +55 °C (+14 °F to +131 °F)

Technical Document

Omicron CPC 100 Datasheet

Download

Technical Document

Omicron CPC100 Getting Started

Download

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

What is the purpose of an Omicron CPC 100?

The Omicron CPC 100 universal primary injection test set provides accurate tests, results, and readings on many electrical devices. Ideal for substation asset commissioning and maintenance.

What is primary injection testing?

Primary injection testing is the complete test for a circuit breaker. It verifies the entire protection chain in a circuit breaker. The current flows through the pole(s) of the circuit breaker, thus verifying the current-carrying path. The current sensors and wiring are checked. The trip unit logic is verified.

How often should circuit breakers be tested?

Circuit breakers should be routine trip tested every 3 to 5 years. Low-voltage circuit breakers should be inspected and maintained every 1 to 3 years.

Can I hire the Omicron CPC 100 universal primary injection test set?

Yes, you can hire the Omicron CPC 100 universal primary injection test sets directly through ESS from one of our 19 locations across the UK. ESS are one of the UK’s leading hire specialist, with a wide product range in test and measurement, survey, safety and communications.
