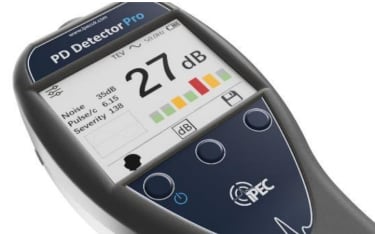

IPEC PD Detector Pro

The PD Detector Pro is an efficient and easy to use tool to detect PD in MV and HV assets. Compatible with a wide range of sensors, the PD Detector Pro can be used on multiple assets to easily identify and quantify Partial Discharge. The large colour touch screen makes analysis clear and simple and data storage with integrated software give a clear picture of asset health over time.

The PD Detector Pro features advanced noise rejection algorithms to effectively filter out background electrical noise, displaying both PD and Noise level for the user.


ESS Code: HPIN.3

• PD and Noise - Shows both PD and noise level simultaneously
• PD Sensors - TEV, HFCT, Ultrasonic, UHF, VDS
• Audio on all Sensors – Hear the PD from any sensor
• PD Data - PD, PRPD, PRPS
• Wireless Sync In-built- Automatically locks on to exact 50/60Hz frequency from HV assets – wireless sync in-built into device
• 3.5” Widescreen Touchscreen – Widescreen for larger PRPD and data views
• Internal Storage - Save PD data for analysis & reporting
• Multi Language – English, Arabic, Chinese, French and more
• PD Smart Hub™ - IPEC's new centralised data management and analysis tool
• PC or Cloud Sync - Sync data locally to your PC with the included software, or sync remotely to the cloud for access across devices


• PD Sensors: TEV, Ultrasonic (AA), HFCT, UHF, VDS,
• Other Sensors: Temperature and Humidity
• Enclosure: Injection moulded plastic case
• Display and Control: High Resolution Colour Touchscreen
• Connectors USB-C: Power and Communication Coded connector: Auto Detect Sensors
• Operating Temperature: -20°C to 50°C
• Humidity: 0 - 95% RH non-condensing
• IP Rating: 54
• Communication: USB-C
• Data Storage: Local PC or Customer Cloud Server
• Data Access: Local PC or Web front end
• Results: PD Level, Noise Level, PRPD, PRPS
• Compliance: CE-compliant in accordance with EMC Directive (2014/30/EU) IEC 62478: High voltage test techniques - Measurement of partial discharges by electromagnetic and acoustic methods


• PD Detector Pro
• AC power USB cable and plug
• PD & Ultrasonic testing unit and charging cable
• Headphones
• Rugged, hard carrying case
• Quick start guide


Lead time: 1 days
