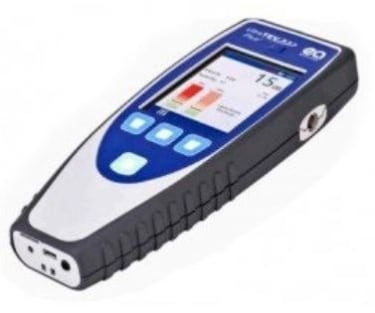

EA UltraTEV Plus2 Partial Discharge Tester

The UltraTEV® Plus² is a versatile hand-held tool used to easily detect and classify Partial Discharge in a wide range of electrical equipment. The UltraTEV® Plus² uses inbuilt TEV and Ultrasonic sensors and external accessories to detect the presence of potentially damaging Partial Discharge in switchgear, cables and overhead line equipment. The UltraTEV® Plus² brings together several complementary sensor modes in a single handheld instrument. By regularly checking switchgear while it’s in service using the UltraTEV® Plus², failure risks can be identified and action taken to avoid faults and downtime. Partial discharges (which are electrical discharges that do not completely bridge the insulation between electrodes) may be small but they can cause progressive deterioration of insulation that may eventually lead to failure. Non-intrusive partial discharge detection using the UltraTEV® Plus² provides a means of identifying these potential sources of insulation failure. If not detected the discharge may result in failure causing not only in loss of supply to customers and damage to plant but could also endanger staff.

ESS Code: HPIN.2

• The UltraTEV® Plus² provides numerical and audible ultrasonic readings for classification of Partial Discharge (PD).
• Provides numerical and audible TEV readings for interpretation of PD.
• With Kit 3 the UltraTEV® Plus² can detect PD in Metal clad Switchgear, Cables and Outdoor assets, and with the UltraDish™ included in Kit 3, PD activity can be measured in overhead assets, offering a comprehensive condition assessment package.
• Menu-driven backlit colour touchscreen and buttons (can be used when wearing gloves) giving an intuitive user experience The UltraTEV® Plus² records measurements at the touch of a button.
• Internal storage can be used to provide access to historical data while you are out in the field.
• Capturing what you have measured allows you to see trends in the performance of your network.


• Long-life rechargeable internal Lithium-Ion (Li-Ion) battery.
• Temperature and Humidity sensor. Headphones & battery chargers.
• Phase plots which help to differentiate between noise patterns and real PD.
• Waveform capture examines amplitude of individual pulses, for PD Characteristics.
• Histograms can assist with identification of multiple sources of PD and noise discrimination The UltraTEV® Plus2 has NFC capability to store Asset data on programmable tags.
• It also has the ability to transfer the results directly on to your PC via Wifi or USB / SD Card.


Lead time: 1 days
