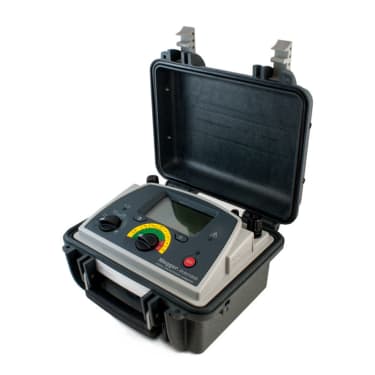

Megger DLRO10HD Micro-ohmmeter

The new heavy duty Megger DLRO10HD low resistance ohmmeter combines rugged construction with accuracy enabling ease-of-use. With 0.1 micro-ohm resolution, 0.2 per cent basic accuracy and a dedicated mode for use with inductive loads, the DLRO10HD is suitable for applications such as verifying larger motors and transformers, checking welding joint quality, and performance of lightning protection bonds and aircraft structures.

With a high or low output power selection for condition diagnosis with a rechargeable battery or line power supply, the Megger micro ohmmeter enables continuous operation even with a dead battery. The rotary switch selects one of five test modes including auto start on connection giving ease of use.
Five Test Modes of the Megger DLRO10HD Low Resistance Ohmmeter
Normal Mode -    The test is initiated by pressing the 'test' button. The instrument verifies continuity of all four connections, and then applies the test current in both forward and reverse directions before displaying the result.


ESS Code: HDCT.2

  • High or low output power selection for condition diagnosis
  • Rechargeable battery or line power supply
  • With high input protection to 600V inadvertent connection to line or UPS voltage will not blow a fuse.
  • Heavy duty case rated IP 65 lid closed or IP54 operational (battery operation only)
  • The rotary switch selects 1 of 5 test modes including auto start on connection
  • Large, clear LCD display with backlight and contrast adjustment
  • Auto power off function
  • 10A for 60 seconds, less time waiting to cool
  • The high power <25W ranges (measuring up to 250milliohm at 10A or 2.5ohm at 1A)
  • Nominal Current: Up to 10A
  • No. of ranges with power limited to 0.25W: 6
  • No. of higher power ranges: 2
  • Display: LCD Backlit
  • Weight: 6.7 kg

Technical Document

Megger DLRO10HD Datasheet

Megger DLRO10HD Datasheet
  • Megger DLRO10HD Part No: Megger 1006-604
  • 2 x DH4 Duplex handspikes (1006-444)
  • Megger KC1-C Duplex Kelvin Clip Lead Set (optional, please select above)
  • Test lead pouch (lid mounted) 1000-036
  • DLRO10HD user guide CD 1000-869
  • Warranty book. 6170-618
  • Calibration Certificate (optional)


Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Megger DLRO10HD Micro-ohmmeter

hire Price

ESS Code: HDCT.2
£101.85 Weekly

Rates exclude VAT and Damage Waiver

£101.85 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

How to use Guide

Marketing Cookies must be enabled to view third party videos

Key Product Features

  • High or low output power selection for condition diagnosis

  • Rechargeable battery or line power supply

  • With high input protection to 600V inadvertent connection to line or UPS voltage will not blow a fuse.

  • Heavy duty case rated IP 65 lid closed or IP54 operational (battery operation only)
