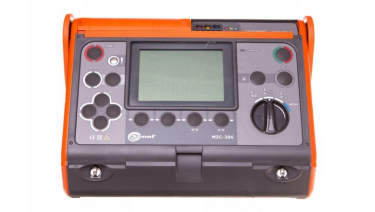

Sonel MZC-306 Impedance Meter Main Image

Sonel MZC-306 Impedance Meter

Capable of a wide range of operating voltages from100V to 750V, means the Sonel MZC-306 Loop Impedance Meter can be used to determine measurements for a vast array of Applications. This makes the Sonel MZC-306 Loop Impedance Meter suitable for use in Domestic and Industrial applications.

The Sonel MZC-306 is suitable for all aspects of electrical testing, from applications where there is a need to check the circuits under voltage of 400/690 V. The meter has a wide variety of applications from domestic, Industrial, rail and generation such as wind farms.

The MZC-306 is an ideal unit for testing electrical systems, where fault currents may reach 5.3 kA (measured according to EN 61557).

ESS Code: HLOT.5

  • Fault loop impedance measurement with 0.01 Ω resolution.
  • Low-current impedance measurement in circuits protected by RCD ≥ 30mA with 0.01 Ω resolution (range of 100…440 V).
  • Operates in networks with voltages 110/190 V, 115/200 V, 127/220 V, 220/380 V, 230/400 V, 240/415 V, 290/500 V and 400/690 V (operating range 100…750 V).
  • Operating frequency 45…65 Hz
  • Calculation of Ik fault current.
  • Automatic differentiation between phase and phase-to-phase voltage.
  • Possibility of applying an adapter terminated by a power network plug or 1.2, 5, 10, 20 m test leads.
  • Measurement with swapped L and N conductors.
  • Measurement of resistance (RS) and reactance (XS) components.

Technical Document

Sonic MZN-306 User Manual

View or download the Sonic MZN-306 User Manual
Technical Document

Sonic MZN-306 Datasheet

View or download the Sonic MZN-306 Datasheet
  • WS-05 adapter with UNI-SCHUKO angular plug
  • Pin probe 1 kV (banana socket) red / blue / yellow
  • Test lead 1.2 m (banana plugs) red / blue / yellow
  • Crocodile clip 1 kV 20 A red / blue
  • USB cable
  • Hanging straps
  • NiMH battery 4.8 V 4.2 Ah
  • Mains power cable Euro 2-pin plug / IEC C7 plug
  • Z7 Power supply adapter


Lead time: 1 days
