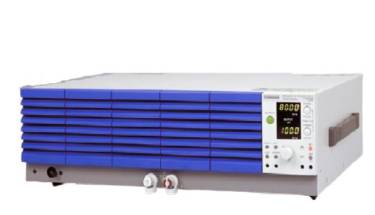

PWR1600M 320v 25a 1600w DC Supply

The Kikusui PWR1600M DC Power Supply is engineered to deliver exceptional performance. With an output capacity of 1600W, it provides a flexible voltage range up to 320V and a current range up to 25A, accommodating various testing and operational requirements.
One of the standout features of the PWR1600M is its multi-range functionality, allowing seamless adjustment of voltage and current within the maximum power rating. This versatility ensures compatibility with a wide array of applications, from component testing to system integration.
The automatic crossover between constant voltage (CV) and constant current (CC) modes enhances operational efficiency, enabling the power supply to adapt to varying load conditions without manual intervention. This feature is particularly beneficial in dynamic testing environments where load parameters may fluctuate.
Designed with a wide input voltage range of 100 VAC to 240 VAC and operating at 50 Hz to 60 Hz, the PWR1600M is suitable a versatile and flexible high current power supply


ESS Code: HPSU.4

• Multi-range voltage and current output
• 1600W maximum power capacity
• Automatic CV/CC crossover functionality
• Wide input voltage compatibility (100-240 VAC)
• High stability and low ripple output
• User-friendly interface with digital controls
• Overvoltage and overcurrent protection
• Remote control capability via standard interfaces


• Output Voltage Range: 0 to 320V
• Output Current Range: 0 to 25A
• Maximum Output Power: 1600W
• Input Voltage: 100 VAC to 240 VAC, 50 Hz to 60 Hz, single-phase
• Ripple (CV Mode): 25 mVrms
• Ripple (CC Mode): 50 mA
• Operating Temperature: 0°C to 40°C
• Dimensions: 450 x 150 x 470mm


• Kikusui PWR1600M DC Power Supply
• Power cord
• User manual
• Calibration certificate


Lead time: 1 days
