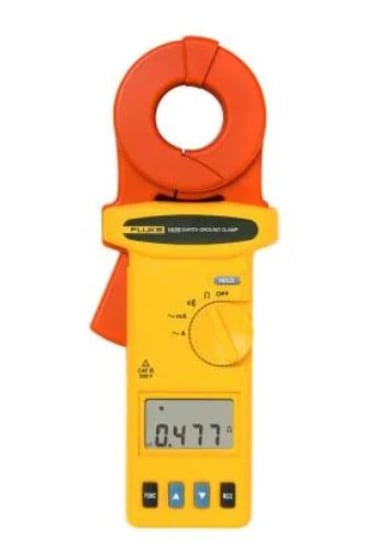

1630 Stakeless Earth Clamp

The Fluke 1630 Stakeless Earth Clamp streamlines the process of measuring earth ground loop resistance by eliminating the need for traditional ground stakes. This feature is particularly advantageous in environments where driving stakes is impractical, such as inside buildings or on paved surfaces. The device's large jaw opening of 40 mm accommodates a wide range of conductor sizes, enhancing its versatility across different applications.
In addition to ground resistance measurements, the 1630 Earth Clamp is capable of detecting AC leakage currents ranging from 0.2 mA to 1000 mA. This functionality is essential for identifying and troubleshooting leakage currents in electrical installations, ensuring system integrity and safety.


ESS Code: HERS.1

• Stakeless ground resistance measurement
• AC leakage current detection
• Large 40 mm jaw opening
• User-defined HI/LO alarm limits
• Display-Hold function for capturing readings
• Continuity loop test with audible alarm


• Ground Resistance Range: 0.025 Ω to 1500 Ω
• Leakage Current Range: 0.2 mA to 1000 mA
• Jaw Opening: 40 mm (1.57 in)
• Frequency Range: 40 Hz to 1 kHz
• Ingress Protection: IP30 with jaw closed
• Safety Rating: 300 V, CAT III pollution degree 2 IEC 61010-1 and IEC 61010-2-032
• Battery Life: ≥ 8 hours (continuous operation)
• Dimensions: 276 x 100 x 47 mm (10.8 x 3.9 x 1.9 in)
• Weight: 750 g (1.165 lbs)


• Fluke 1630 Stakeless Earth Clamp
• Rugged carrying case with shoulder strap
• Resistance test loop
• Calibration certificate
• User's manual
