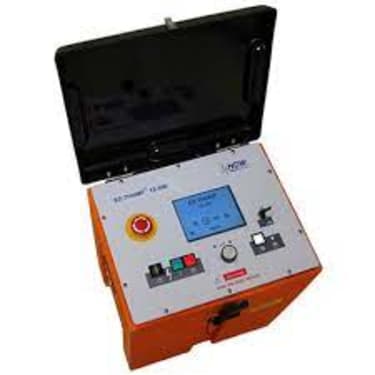

SEBA KMT 3/4kV EZ Thump Cable Locator

The EZ-Thump is a compact and lightweight, battery- or AC-operated fault location system for LV and MV Cables. It is the perfect complement for a satellite-based fault location concept in outlying areas with both lower population density and fault rate, where speed, easy operation, weight, and economics are the driving factors. This unit requires absolutely no adjustments and is operated via rotary control knob.

Connect it, switch it on, and prelocate the fault without having to make any settings. This fully automatic unit allows even inexperienced and only occasional users to locate faults without specific training being necessary.
The result is automatically displayed on the transflective colour 5.7” LCD as graphical trace and numerical value with the distances of the cable end, fault position and joints. The display shows the comparison of the ARM reference and fault trace.

ESS Code: HCFL.12

  • Push button operation
  • Emergency off button will safely discharge the unit off
  • Extremely easy to use
  • Prelocation & pinpointing in one small unit
  • Transflective, colour LCD display
  • Integrated battery
  • No user settings required
  • Easy & Expert mode
  • Direct display of all important data
  • Small & portable
  • USB upload/download interface
  • Can be easily transported
  • Dimensions: 355 x 280 x 533mm
  • Weight: 32kg
  • Energy/voltage output 500 Joules at 0 - 12KV
  • DC Hipot output, voltage is adjustable  0KV - 12KV
  • Measurement range up to 25000ft
  • Fault distance accuracy <2.5 feet depending on displayed range
  • Test voltage: 0 … 12 kV or 0 … 4 kV
  • Insulation measurement: Integrated
  • Surge voltage: 0 … 12 kV or 0 … 4 kV
  • Surge energy: 500 J @ max. voltage
  • Breakdown detection: Automatic
  • Display: Transflective 5,7“ LCD
Technical Document

HCFL.12 Datasheet

HCFL.12 Datasheet

Soft Carry Case
240V IEC Lead
HV Test Lead Black
HV Earth Lead
USB Data Transmission Stick
Instruction Manual
Calibration Certificate
Includes Digiphone +2 NTRX set

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

SEBA KMT 3/4kV EZ Thump Cable Locator

hire Price

ESS Code: HCFL.12
£649.95 Weekly

Rates exclude VAT and Damage Waiver

£649.95 Ex. VAT


Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Key Product Features

  • Push button operation.

  • Emergency off button will safely discharge the unit off.

  • Extremely easy to use.

  • Prelocation & pinpointing in one small unit.
