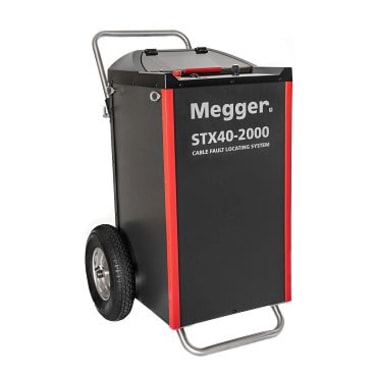

Megger STX40-2000 Portable Fault Location System

With its single rotatory knob or touch screen control, and fully automated motorised HV switches the STX 40 is the most convenient and most powerful portable fault location unit in the market. It is ideally suited for all essential fault locating tasks, namely analysing, prelocating and pinpointing of faults on low voltage and medium voltage XLPE or EPR insulated cables. With its 40 kV DC source and a potent high frequency burner it is also highly effective on PILC cablesWith its single rotatory knob or touch screen control, and fully automated motorised HV switches the STX 40 is the most convenient and most powerful portable fault location unit in the market. It is ideally suited for all essential fault locating tasks, namely analysing, prelocating and pinpointing of faults on low voltage and medium voltage XLPE or EPR insulated cables. With its 40 kV DC source and a potent high frequency burner it is also highly effective on PILC cables.

ESS Code: HCFL.14

• Built-in safety circuits for earth connection monitoring (F-Ohm) and touch potential monitoring (F-Voltage)
• Full TDR control of all HV functions
• To identify different types of faults: Insulation resistance evaluation up to 20 kV and 650 MΩ
• DC testing up to 40 kV, with automatic voltage breakdown voltage detection and ramp function
• Integrated radar/TDR and integrated pre-location with radar-based and transient pre-location methods
• Surging/Thumping at 8/16/32 kV with 2000 J, Optionally with additional 4 kV stage 1100 J


• Insulation resistance testing
• Time Domain Reflectometry (Radar)
• HV DC proof testing (DC hipot)
• Burning
• TDR-based prelocation and additionally transient prelocation methods
• Surging/Thumping in multiple voltage stages
• Sheath testing and Sheath fault pinpointing
• True portable outdoor-ready unit, IP 43
• Very easy to use 'turn and click' single rotary knob interface
• Surge/thump energy 2000 Joules
• DC testing up to 40 kV, surging/thumping up to 32 kV, burning up to 40 kV
• Pre-location methods: Inductive ARM with multishot, ICE, and DECAY
• Built-in safety circuits for earth connection monitoring (F-Ohm) and touch potential monitoring (F-Voltage)
• Full TDR control of all HV functions


Mains Lead
HV Output Cable
HV Output Cable Extension
HV Croc Clip
HV Negative Clip
Earth Test Lead x 2
Earth Extension Lead
Earth Spike
Discharge Stick
Red 4mm Test Lead
Safety Switch Box
Safety Switch Box Connection Lead
Calibration Certificate
Includes Digiphone +2 NTRX set

Lead time: 2 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.
