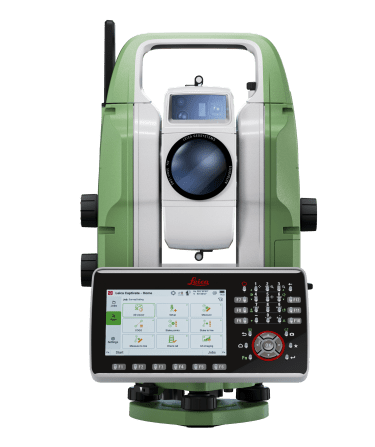

Leica TS20 + AP20

The Leica TS20 Total Station represents the newest evolution in robotic survey technology, designed specifically for professionals who need exceptional accuracy, efficiency and durability on demanding projects. Bringing together edge-AI automation, fast measurement performance and a highly rugged build, the TS20 is well suited to construction, rail, utilities, petrochemical and wider infrastructure environments where productivity and reliability are essential.

At the heart of the TS20 is an integrated Neural Processing Unit, enabling intelligent on-instrument features such as AI-powered prism recognition, automatic target search and enhanced locking. These capabilities significantly reduce setup time and help avoid common field errors, supporting consistent results even in challenging site conditions or poor weather. Whether you are setting out complex structures, capturing as-built data, conducting monitoring tasks or mapping utilities, the TS20 keeps workflows smooth and efficient.

Its IP66-rated housing and maintenance-free direct-drive motors allow the instrument to operate confidently in dust, heavy rain and harsh outdoor conditions. The improved EDM engine delivers fast, high-precision measurements to prisms or reflectorless surfaces, making it ideal for both detailed site work and long-range applications.

Seamless data transfer, cloud workflow integration and secure remote management. The TS20 also works effortlessly with the Leica AP20 AutoPole, Leica Captivate field software and Leica’s full ecosystem of controllers and accessories, ensuring compatibility with existing workflows.

For businesses that need dependable, cutting-edge survey equipment, the TS20 offers a future-ready solution designed to increase site productivity and reduce downtime. Available for short-term hire, long-term rental or purchase, this instrument provides a cost-effective way to equip your teams with the latest generation of robotic surveying technology. Contact us to discuss availability or to arrange a hire package suited to your project.

ESS Code: SRTS.20

• AI-powered automation (AI-Detect, PowerSearch, ATR, future AI-Follow)
• IP66 dust and water protection for all-weather reliability
• Fast, maintenance-free direct-drive motors
• High-speed, accurate EDM with reflectorless capability
• Integrated connectivity: mobile data (eSIM), Bluetooth, Wi-Fi
• Full compatibility with Leica ecosystem (AP20 AutoPole, Captivate, field controllers)


• Angular accuracy (Hz & V)  - 1″, 2″, 3″ or 5″ (0.3 / 0.6 / 1 / 1.5 mgon) l
• Distance measurement (prism)  -  Accuracy 1 mm + 1.0 ppm, typical measurement time ≈ 1.3 s
• Distance measurement (reflectorless / any surface)  -  Accuracy 2 mm + 2.0 ppm, typical time ≈ 1.7 s
• Telescope magnification / focus range  -  30× magnification; focus from 1.45 m to ∞
• Display & user interface  -  5″ WVGA colour multi-touch + 37-key illuminated keyboard
• Processor / OS  -  NXP i.MX 8M Plus with integrated NPU, Linux OS
• Memory / Storage  -  Internal 32 GB + external via USB-C stick (16 GB)
• Battery / Power  -  Exchangeable Li-ion battery; operating time ~ 5 hours
• Connectivity  -  Ethernet, USB-C, Bluetooth, Wi-Fi, optional 4G eSIM (mobile data)
• Environmental / Protection  -  Operating temp –20 °C to +50 °C (–35 °C Arctic version), IP66 dust/water protection  -100% humidity non-condensing


• Leica CS20 Controller
• Leica AP20
• Leica GRZ4 360 Degree Prism
• Leica GEB334 / GEB331 CS20 Li-Ion Battery  X2
• 767856 MSD1000 1GB SD Card
• GEB321 battery for AP20 X2
• GLS51 - Telescopic Detail Pole for AP20
• GVP763 Container for TS20
• GVP775 Backpack for TS20/03/07/10
• GEB461 Battery int Li-Ion 10.8V/6.7Ah X2
• GVP759 AP20 Small Container
• GEV284 USB 3.1 Type A to C Cable 1.5m
• 394742 GST20-9 Leica Wooden Tripod HD
• Leica GHT66 Holder Plate for CS20
• 767880 GHT63 Pole Clamp
• GHT68 Utility Hook for CS20 Controller
• GHT67 Hand Strap
• Carry Case
• Leica GKL341 Multi Charger
• Rain Cover
• Stylus X2


Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.
