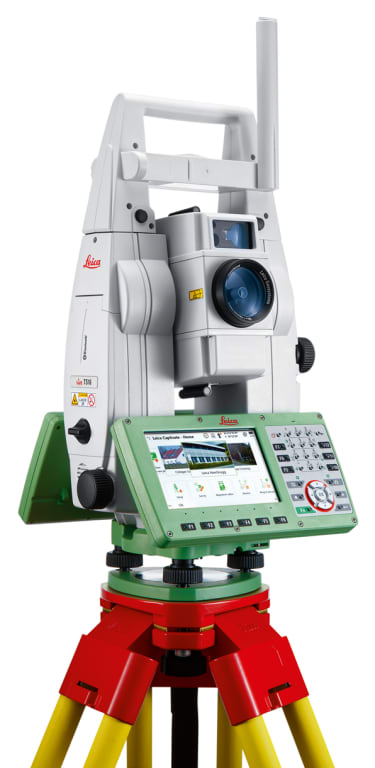

Leica TS16 Robotic Total Station

The TS16 is available in imaging (TS16i) and non-imaging (TS16) versions, with configurations including one-man systems that use the included Leica CS20 Controller.

In-built into the TS16 is the revolutionary Leica Captivate Software that enables the user to transform complex data into realistic and workable 3D Models.

Featuring LOC8, a theft deterrence and location system. With LOC8 the user can track and locate the total station using a mobile phone or computer. While being able to track and locate the total station, LOC8 also allows the unit to be locked remotely with the touch of a button on the app or website.


ESS Code: SRTS.136

• Reflectorless range of 500m – 1000m
• LOC8 theft deterrence and location solution
• IP5 dust/ water protection
• 2GB internal memory with expandable storage via SD card
• 5” WGA colour touch display
• 5.3-6kg weight (including battery)


Technical Specifications of the Leica TS16 Robotic Total Station

• Accuracy Hz and V - 1’’ (0.3 mgon), 5’’ (1.5 mgon)
• Range - with prism 0.9m to 3,500 m, without prism R500: 0.9m to 500m, R1000 0.9m to 1000m
• Accuracy/measurement time - single (prism) 1mm + 1.5ppm / typically 2.4s, single (prism fast) 2mm + 1.5ppm / typically 1.5s, single (any surface) 2mm + 2ppm / typically 2s
• Laser dot size - at 50m 8mm x 20mm
• Overview camera - Sensor (5 megapixel CMOS sensor), Field of view (19.4°), Frame rate (up to 20 frames per second)

• Leica TS16 Robotic Total Station
• Leica CS20 Field Controller
• Leica GST20-9 Heavy Duty Wooden Tripod
• Leica GRZ4 360 Prism
• Leica GLS12 Pole
• Leica GKL341 Pro Charger
• Leica GEB221 / GEB222 Battery
• Leica GEB331/GEB334 Battery
• Heavy Duty Tripod
• Stylus Pen
• Water Cover
• Case
• Leica RH17 Radio Handle
• Leica GDF321 Tribrach
• Leica MSD1000 1GB SD memory card
• Leica GHT66 Field Controller Holder
• Leica GHT63 Pole Clamp for Field Controller
• Leica GHM007 Instruments Height Meter
• Leica GHT196 Distance Holder for Height Meter


Lead time: 1 days
