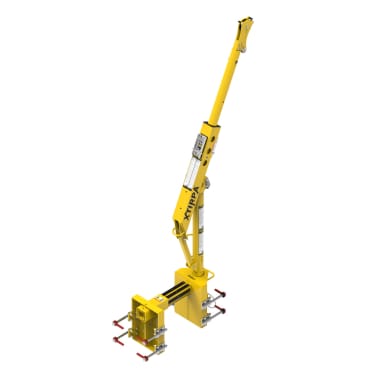

Davit Arm Standard Trench System

The XTIRPA Davit Arm Standard Trench System is ideal for work in areas that require regular set-up and tear-down and where a base can be affixed to an existing structure. This greater versatility offers a solution where other systems are not viable. Typical applications include Water Treatment Works, Pump Houses, Filter Replacement and Works Waste.

 This XTIRPA system is part of our personal protection equipment range intended to act as a support structure or anchor for use in fall protection, work positioning and rescue within confined spaces. This lightweight, reliable and easy to install system provides users with reaches of up to 61 cm, this versatility offers the ideal solution for applications where access to a vertical confined space is required.

ESS Code: HDAV.11

• Unmatched versatility
• Users can gain reaches of up to 61 cm, this versatility offers the ideal solution for applications where access to a vertical confined space is required.
• Ergonomic design
• The system can be easily transported and installed by one person. Set up is safe, easy and can be done in minutes.
• Ultimate protection
• The system’s distinguishable design and colouring ensures greater visibility, ensuring operatives can clearly see and take care around the work area, avoiding injury.
• More flexibility
• The system is designed for multiple uses, using different combinations of components to adapt for use in a variety of confined spaces.
• Easy Storage
• Due to the unit’s compact size, the system can be easily stored.
• Durable
• Stands up to the harshest environments.
• Lightweight
• Due to its design and the use of advanced composites, the unit is one of the lightest systems on the market.
• Higher rates of compliance to safety regulations
• Owing to the system’s simple, safe and quick installation, employers will be able to implement safe systems of work easily

• Davit Arm Specification
•  Maximum working capacity: 164 kg
•  Work position: 61 cm
•  Width: 17 cm
•  Davit Arm weight: 15 kg
•  Mast weight: 10 kg
•  Length: 61 cm
•  Extension and guide tubes: Aluminium
•  Anchorage hooks: Stainless steel
•  Hardwear: Zinc-plated steel / stainless steel
•  Pulley: Black acetal
•  Finish: Security yellow
•  Sala fall arrest winch length: 25 m
•
•  Adjustable Wall Adapter Specification
•  Maximum working capacity: 164 kg
•  Weight: 30 kg
•  Structure: Aluminium
•  Sleeve Bearing: PVC pipe
•  Hardware: Zinc-plated steel
•  Screw Plates: Zinc-plated steel
•  Sliding strips: Ultra-high molecular-weight polyethylene
•  Pin: Stainless steel

 Lanyard: Nylon-covered stainless steel cable

Davit Arm Standard Trench System Only

Lead time: 1 days
