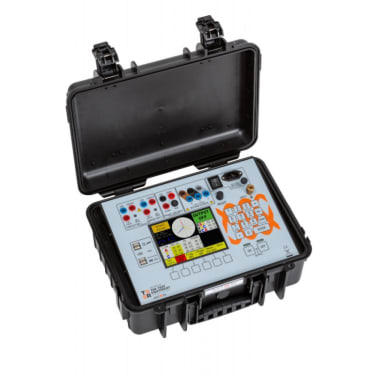

T&R ART3V Relay Test Set

The T&R ART3V Relay Test System is the next generation of Relay Testers with improved features which enable the user to output 0-450V Phase to neutral without the addition of an external transformer. The ART3V has vastly improved accuracy, stability and features. The T&R ART3V has been designed using the latest digital technology to generate a highly stable and accurate output with very low distortion. Each phase output is individually adjustable for voltage, frequency and phase angle. The unit is controlled by a simple user interface within defined menus. Values may be either typed into the keypad or by smooth adjustment using the rotary encoder.

ESS Code: HRPH.37

• Ideally suited to testing G59 & G99 schemes
• Step change of phase and df/dt
• Large 6.5” back-lit colour LCD
• Automatic mains voltage selection
• Fully Programmable test procedures
• Rugged case and weighs under 9kg


• 3-f Voltage output from 1-f supply
• 0-450V f-N output voltage
• 20VA/phase maximum output
• Variable Frequency 30-999.9Hz
• Phase shift ±180.0°
• Multi-function timing system
• USB keyboard for comment
• USB data storage


Lead time: 1 days
