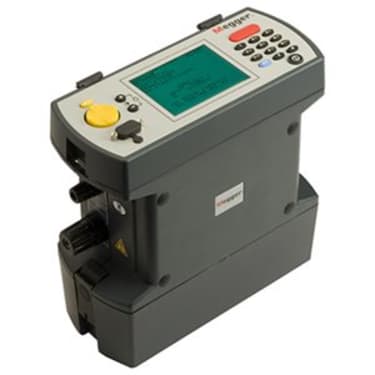

MEGGER DLRO-10X Micro-Ohmeter

The Megger DLRO10X digital micro-ohmmeter bring new standards to low resistance measurement. It's a fully automatic instrument, selecting the most suitable test current, up to 10 A DC, to measure resistance from 0.1 µΩ to 2000 Ω on one of seven ranges. For users who desire more control over the measurement process, the DLRO10X uses a menu system controlled by a two-axis paddle to allow manual selection of the test current. The DLRO10X also enables you to download results in real-time and save them to its on-board storage system for later download to a PC.

The DLRO 10 and DLRO 10X are fully automatic instruments used for measuring resistance in a range of 0.1 μΩ to 2000 Ω, using up to 10 A d.c. on one of seven ranges. The DLRO 10X allows for more control over the measurement process, with a menu system controlled by a two-axis paddle, and real-time download of results and on-board storage for later download to a PC. Both instruments are designed to be lightweight and durable, with the ability to be taken into small spaces.

ESS Code: HDCT.5

  • Accurate results in under three seconds
  • Auto current reversal cancels standing emfs
  • Fuse protected to 600 V
  • NiMH battery reduces weight
  • 250 mW power limit (with optional override) to avoid heating the test sample
  • Automatically detects continuity in potential and current connections
  • Visible warning of high voltages present at the terminals
  • Visible warning of current flowing in the test sample

  • Measurement mode: Manual, Auto, Continuous, Inductive, Undirectional
  • Measurement control: Fully Automatic/Manual
  • Measurement speed: <3s for forward and reverse current and to display average
  • Display Measurement: Large colour display
  • Range and safety: DLRO 10X LED indications
  • Test method: Single cycle reversing d.c. ratiometric measurement-average result display.
  • Test current accuracy: ±10%
  • Test current stability: <10 ppm per second

Technical Document

MEGGER DLRO-10 Datasheet

MEGGER DLRO-10 Datasheet
  • 7 Ah NiMH battery module. 6121-492
  • 2 x DH4 Duplex handspikes (optional)
  • one with indicator lights. 1.2m / 4 ft 6111-503
  • Battery charger for operation from 115/230 V .
  • 50/60Hz supply. 6280-333
  • Cigar lighter adapter for battery charging. 6280-332
  • User guide. 6172-473
