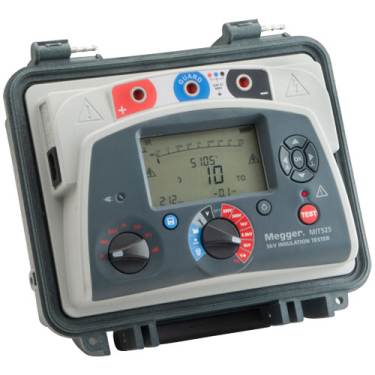

Megger MIT 525 5KV Insulation Tester
The Megger MIT 525 HV Insulation Tester for all 5KV resistance and associated diagnostic tests on high voltage electrical equipment, such as switchgear, circuit breakers, Transformers, cabling etc. As well as the standard Insulation Resistance Test the MIT 525 can carry out Timed IR, Polarization, Dielectric Absorption Ratio, Step Voltage, Dielectric Discharge and Ramp Tests
The MIT 525 5KV Insulation Tester has been designed to enable the user to carry out Insulation Resistance tests with a minimum of fuss and results can be stored for future retrieval and record keeping. Insulation testing of equipment up to 5KV, tests for PI, DAR, DD, SV, Timed IR and Ramp are all features of the Megger MIT 525. The MIT 525 With a CAT IV 600V Safety rating and high short circuit current of 3 mAmps. The instrument is powered from an extended capacity Li-Ion battery pack which can be fully recharged within 3 hours. The Megger MIT 525 can also be used directly from the mains supply in the case of battery drainage. The Megger MIT 525 has a large LCD Display with backlight so viewing in sunlight or darkened locations will not be a hindrance. Simple operation via two rotary switches, and includes Megger unique HV locking Test Leads and non-removable Test Clips. Memory download is via a USB (Type B) comms lead. Data can be downloaded utilising Megger PowerDB Lite asset management software
ESS Code: HINT.10
- Insulation Resistance tests up to 5KV
- IR Range up to 10 TΩ
- Test IR, Timed IR, PI, DAR, DD, SV and Ramp Test
- Simple operation via two rotary switches
- Large LCD Display
- Safety Test Leads with unique locking HV Plugs and non-removable Test Clips
- Battery Operated from Li-Ion Battery or can be powered from the mains supply
- Dedicated Voltage function from 30V to 600V
- Large Memory and Real Time clock for time and date stamp of results
- Download of results utilising Megger PowerDB Lite asset management software
Set up an Account
Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.
Megger MIT 525 5KV Insulation Tester
hire Price
ESS Code: HINT.10Rates exclude VAT and Damage Waiver
£98.00 Ex. VAT
Minimum hire period: 5 days
Lead time: 1 day
Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.
Key Product Features
Voltage Tests from 250V to 5000V
Insulation Resistance Range up to 10 TΩ
User has the ability to test IR, Timed IR, PI,DAR,DD SV & Ramp function
Battery Powered with up to 6 hours continuous testing on a full charge
