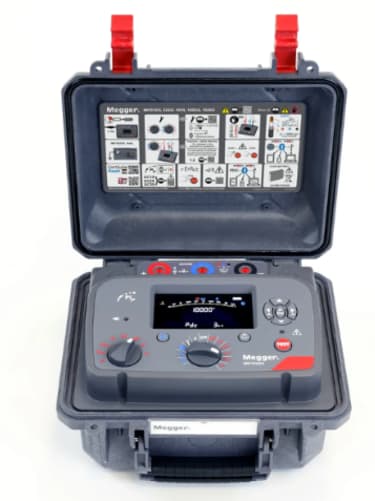

Megger MIT 525/2 Advanced 5KV Insulation Tester

The Megger MIT 525/2 Advanced is engineered for high-performance insulation resistance testing in demanding electrical environments. With test voltages up to 5 kV and resistance measurement into the TΩ range, it is ideal for verifying the integrity of equipment such as high-voltage cables, power transformers, switchgear, motors/generators, and high-voltage bushings.
Large business procurement teams will appreciate its rugged dual-case design (for extra protection), IP65 rating with the lid closed and CAT IV safety rating at all terminals. Small and medium business owners or maintenance contractors will value the battery/AC mains operation flexibility, rapid-charge li-ion battery, and simplified user interface.
Diagnostic capabilities include Polarisation Index (PI), Dielectric Absorption Ratio (DAR), Dielectric Discharge (DD), Step Voltage (SV) and Ramp Test modes. Including RE>Act mode for enhanced accuracy and safety — enabling advanced fault detection beyond basic insulation resistance.
On-board memory allows time-and date-stamped results, whilst the USB and Blue tooth interface supports data transfer to PC for logging and integration into asset-management systems (such as Megger’s PowerDB).

Examples of applications and industries:

• Electrical utilities: testing HV cables and switchgear during maintenance outages
• Manufacturing plants: verifying insulation on large motors and generators to avoid downtime
• Renewable energy: inspecting wind-turbine cable insulation and transformer bushings
• Rail and transport infrastructure: preventative testing of overhead line or traction components
• Commercial building services: high-voltage cable and distribution board insulation verification

If your business needs a reliable insulation tester for hire or sale in the UK, choose the Megger MIT 525/2 Advanced — contact us now to request a quotation or arrange a demonstration.


ESS Code: HINT.111

• 5 kV maximum test voltage
• Multiple test modes: IR, PI, DAR, DD, SV, Ramp
• RE>Act mode for enhanced accuracy and safety
• USB/Bluetooth data output and memory storage
• Rugged dual-case design, IP65 (lid closed)
• CAT IV 600 V safety rating
• Li-ion rapid-charge battery plus mains operation
• High noise immunity (rejects mA-level noise)
• Large backlit display with intuitive controls


• Test voltage: 250 V, 500 V, 1 000 V, 2 500 V, 5 000 V and user-defined values
• Resistance measurement up to approx. 10 TΩ for 5 kV units
• Current range: 0.01 nA to 6 mA
• Safety rating: CAT IV 600 V (to 3 000 m) for the 5 kV models
• Noise rejection: up to ~3-6 mA noise filter
• Battery: Li-ion, rapid-charge; >60 minutes testing after 30 minute charge
• Protection: dual-case, outer rugged shell + inner fire-retardant, IP65 when closed
• Interface: USB (Type B) isolated
• Bluetooth connectivity


• Megger MIT 525/2 Advanced insulation resistance tester
• Power lead / AC mains charger
• USB cable for data transfer
• Lead set (3 m x 3 leads, medium clips) rated for 3 kV equivalent
• User manual
• Carrying case / holdall
• Calibration certificate


Lead time: 1 days
