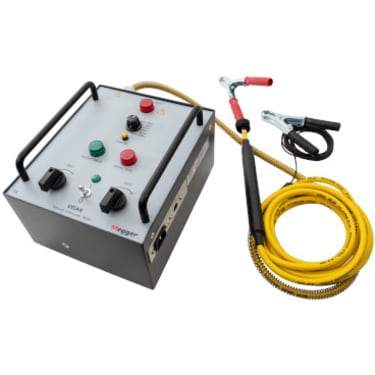

Megger VIDAR Vacuum Interrupter Tester

VIDAR permits you to select among test voltages from 10 to 60 kV DC. One of these voltages is customized and specified by the customer when ordering. A green lamp indicates approval of the interrupter. A red lamp indicates that it is defective. Two-hand control and a high-voltage warning lamp enhances safety.

ESS Code: HCBA.7

• High voltage cable. For connection of the test voltage and ground to the vacuum breaking chamber.
• HIGH-VOLTAGE warning lamp. Shows that the high voltage is applied.
• Protective earth (ground) terminal.
• Test voltage selector. 10 to 60 kV DC. One of these voltages is customized and specified by the customer when ordering.
• Large test clip connectors. Provides for quicker connection and more efficient testing process.

• Operating temperature: -10°C to +50°C (14°F to +122°F)
• Storage & transport temperature: -40°C to +70°C (-40°F to +158°F)
• Mains voltage: 115 / 230 V AC (switchable), 50 / 60 Hz
• Power consumption: 69 VA (max)
• Standard voltages: 10, 14, 25, 40 and 60 kV DC
• Accuracy: 0 to -15%
• Dimensions: 250 x 210 x 125 mm
• Weight: 6.9 kg


• Megger VIDAR Vacuum Interrupter Tester
• Permanently mounted cable set 5m (16 ft)
• Ground (earth) Cable
• Transport Case (GD-00030)


Lead time: 1 days
