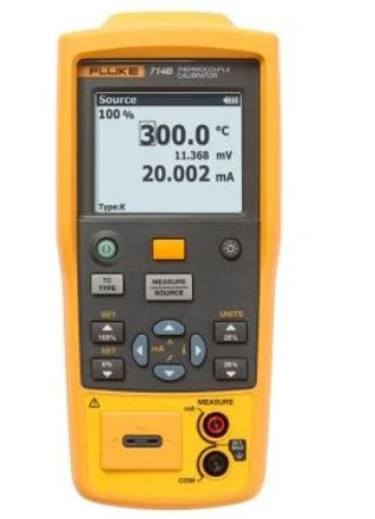

Fluke 714B T/C Temperature Calibrator

The Fluke 714B Temperature Calibrator offers exceptional performance for temperature calibration tasks across multiple industries, including infrastructure, rail, construction, power engineering, environmental monitoring, petrochemical, confined spaces, and utilities. This handheld, battery-operated device measures and simulates 17 different thermocouple types and millivolts, providing versatility for various calibration needs. Its capability to measure 4 to 20 mA signals while sourcing a temperature signal streamlines processes, enhancing efficiency and giving the capability of quickly testing temperature transmitters
Designed with user convenience in mind, the calibrator features a magnetic hanger for hands-free operation, allowing technicians to perform tasks without holding the device. Configurable 0% and 100% source settings enable quick 25% linearity checks, facilitating rapid assessments of instrument performance. The device also includes linear ramp and 25% step auto ramp functions based on 0% and 100% settings, aiding in comprehensive linearity evaluations.


ESS Code: HPCA.7

• Supports measurement and simulation of 17 thermocouple types
• Measures millivolt signals
• Simultaneously measures 4 to 20 mA signals while sourcing temperature
• Includes magnetic hanger for hands-free use
• Configurable 0% and 100% source settings for quick 25% linearity checks
• Linear ramp and 25% step auto ramp functions
• Dual inputs with backlit display for easy measurement interpretation
• Retains power-down settings for easy test resumption


• Size (H x W x L): 52.5 x 84 x 188.5 mm
• Weight: 515 g
• DC mA Measurement:
• Range: 0 to 24 mA
• Resolution: 0.001 mA
• Accuracy: ±0.010% of reading + 2 µA
• Millivolt Measurement and Source:
• Range: -10 mV to 75 mV
• Resolution: 0.01 mV
• Accuracy: ±0.015% of reading + 10 µV
• Thermocouple Input and Output:
• Types Supported: E, J, K, N, R, S, T, B, L, U
• Range: Varies by type (e.g., Type K: -200°C to 1372°C)
• Accuracy: Varies by type and range (e.g., Type K: ±0.3°C for -100°C to 600°C)
• Power Supply: 4 AA batteries (NEDA 1.5A IEC LR6)
• IP Rating: IEC 60529: IP52

• Fluke 714B Temperature Calibrator
• Magnetic hanger for hands-free operation
• Protective yellow holster with test lead storage
• Pair of 4mm test leads
• Instruction sheet
• Calibration certificate

Lead time: 1 days
