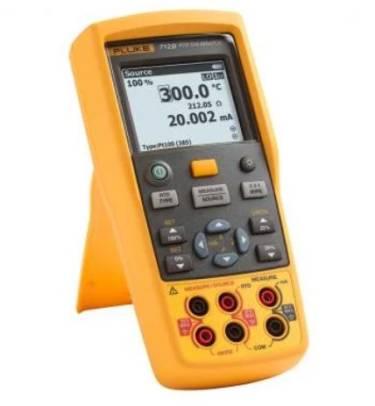

Fluke 712B RTD Temperature Calibrator

The Fluke 712B RTD Temperature Calibrator is a handheld, battery-operated instrument engineered for precision in temperature calibration tasks. It offers the capability to measure and simulate 13 different RTD types and resistances, making it versatile for various applications. Additionally, it can measure 4 to 20 mA signals while simultaneously sourcing a temperature signal, streamlining calibration processes.
Designed with user convenience in mind, the 712B features an integrated magnetic hanging tool, allowing for hands-free operation in challenging environments. The configurable 0% and 100% source settings facilitate quick 25% linearity checks, enhancing efficiency during calibration tasks. The dual inputs and backlit display ensure easy interpretation of measurements, even in low-light conditions.


ESS Code: HPCA.6

• Measures and simulates 13 RTD types and resistance
• Simultaneous 4 to 20 mA measurement and temperature signal sourcing
• Integrated magnetic hanging tool for hands-free operation
• Configurable 0% and 100% source settings for quick linearity checks
• Linear ramp and 25% step auto ramp functions
• Dual inputs with backlit display for easy measurement interpretation
• Retains power-down settings for seamless test resumption
• Supports pulsed transmitters and PLCs with pulse times as short as 5 ms
• Compact and lightweight design for portability


• RTD Measurement and Simulation: Supports 13 types, including Pt100, Pt200, Pt500, Pt1000, and Cu10
• Resistance Measurement Range: 0.00 Ω to 4000.0 Ω
• DC mA Measurement: 0 to 24 mA range with 0.001 mA resolution
• Accuracy: ±0.015% of reading + 0.05 Ω for resistance; ±0.010% of reading + 2 µA for mA measurement
• Operating Temperature: -10°C to 50°C
• Power Supply: Four AA batteries
• Dimensions: 52.5 mm (H) x 84 mm (W) x 188.5 mm (L)
• Weight: 515 g


• Fluke 712B RTD Temperature Calibrator
• Magnetic hanging tool
• Four AA batteries
• User manual
• Calibration certificate
• Test leads
