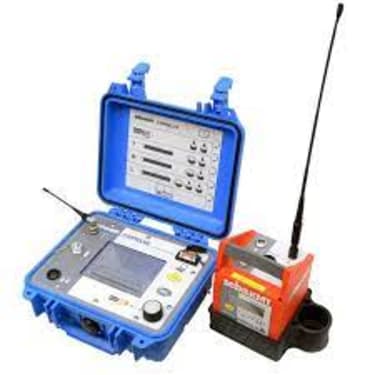

Seba KMT Correlux P-1 Water Leak Detector

The correlator Correlux P-1 is used for leak location on pipes for potable water. Water, escaping from a leak under pressure creates a noise which travels into both directions of the pipe. This noise is recorded by two sensors (piezo-microphones, hydrophones) attached to the pipe ( e. g.: valves, hydrants), amplified and transmitted to the correlator. The Correlux P-1 compares both signals (correlation) and calculates the exact distance to the leak by use of the signal delay, the sensor distance and the sound velocity

ESS Code: HLEK.2

• Easy handling with rotary encoder,
• Rugged and compact design,
• Simultaneous display of the correlation chart and the coherence spectrum (FFT- analysis),
• Quick filter optimisation without using menus,
• Fast and easy leak identifi cation by using the overview measurement with unknown pipe parameters ,
• High radio output for broad reach,


• Processor: RISC- and DSP-processor
• Display: 320 x 240 Pixel, ¼“ VGA monochrome
• Data entry: Rotary encoder with enter function
• Memory capacity: 10 charts (incl. comment)
• Power supply: Internal Akku, NiMH, external 12 V DC (car-adapter), 100- 240 V AV
• Operating / charging time: > 18 h / < 3 h
• Interface: RS 232 (updates, print out and data communication via PC)
• Connections: Sensor/ Hydrophone direct connection, antenna, headphones/ recharging, charging contacts in case
• Protection class: IP 67
• Operating temperature: -20 °C … +60 °C
• Dimensions: 270 x 130 x 240 mm
• Weight: 3.3 kg
