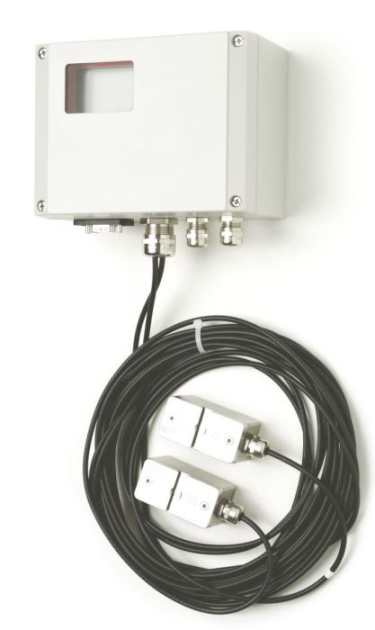

Katronic KF100 Ultrasonic Flowmeter

The Katronic KF100 Ultrasonic Flowmeter offers a robust and practical solution for permanent flow measurement installations. Utilizing advanced clamp-on ultrasonic technology, it provides precise, non-invasive measurements, eliminating the need to cut into pipes or halt operations.
This flowmeter is compatible with pipe diameters ranging from 10 mm to 3,000 mm and operates effectively within a sensor temperature range of -30 °C to +80 °C. Its sturdy IP66-rated aluminium enclosure ensures durability in demanding environments.
Equipped with multiple input and output options, including RS 485, Modbus, 4-20mA, and open-collector pulse, the KF100 integrates seamlessly into various control systems. Additionally, it features PT100 inputs for heat quantity (thermal energy) measurement, making it suitable for applications requiring energy flow monitoring.


ESS Code: HFLM.5

• Compact and robust design
• Non-invasive clamp-on installation
• Multiple input and output options
• PT100 inputs for thermal energy measurement
• Bi-directional measurement with totaliser function
• Innovative installation wizard for quick setup
• Configurable to customer requirements


• Pipe diameter range: 10 mm to 3,000 mm
• Sensor temperature range: -30 °C to +80 °C
• Weight: 750 g
• Enclosure: IP66-rated aluminium
• Display: LCD with five-key keypad
• Mounting: Wall or pipe mounted
• Power supply: AC or DC
• Communication interfaces: RS 485, Modbus, 4-20mA, open-collector pulse


• Katronic KF100 Ultrasonic Flowmeter
• Clamp-on transducers
• Mounting hardware
• Power supply unit
• User manual
• Calibration certificate


Lead time: 1 days
