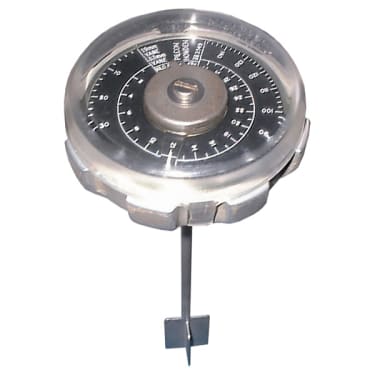

Hand Shear Vane Soil Tester

Predominantly used to determine in-situ shear strength of cohesive soils, the hand shear vane soil tester provides accurate and portable measurement applications on-site or in undisturbed samples in the laboratory.

  • Applications: On-site or on undisturbed samples in the laboratory
  • Comprises a torque head with a direct reading scale, which is turned by hand
  • A non-return pointer indicates the reading
  • Vanes either 19mm or 33mm diameter

Predominantly used to determine in-situ shear strength of cohesive soils, the hand shear vane soil tester provides accurate and portable measurement applications on-site or in undisturbed samples in the laboratory. Equipped with either 19mm or 30mm diameter with optional extensions rods that screw into the rear of the torque head, enabling a penetration into undisturbed soil of 200mm.

The Hand Shear Vane Soil Tester comprises a torque head with a direct reading scale for efficient measurements, which can be turned by hand. Measurements are indicated with an easily visible non-return pointer, the unit is specifically adapted to present a conversion factor to B.S. 1377 Vane Test results on the dial.

ESS Code: HVAN.1

  • An accurate and portable instrument for the determination of in-situ shear strength of cohesive soils
  • Applications: On-site or on undisturbed samples in the laboratory
  • Comprises a torque head with a direct reading scale, which is turned by hand
  • A non-return pointer indicates the reading
  • Vanes either 19mm or 33mm diameter
  • Optional extension rods: 300mm or 1000mm extension
  • Adapted to show on the dial a conversion factor to B.S. 1377 Vane Test Results
  • All components fit into one transportation case
  • Dimensions (transport case): 330 x 260 x 85mm
  • Weight: 1.7 kg
Technical Document

Hand Shear Vane Datasheet

Hand Shear Vane Datasheet

Display Protective Cover
33mm Vane
19mm Vane
Vane Extention Rod
Operating Guide
10mm Spanner x 2
Calibration Certificate


Lead time: 1 days
