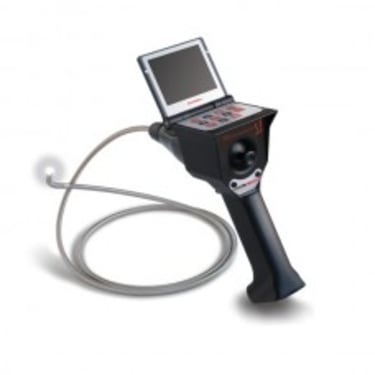

VJ-ADV 6.9MM Articulating Video Endoscope

The VJ-ADV is an all-in-one system that combines a 4-way Articulating Video Borescope with an on-board imaging system. Jpeg images can be captured with the click of a button whilst another button allows you to start and stop video recording.

The removable Micro SD flash memory card can also transfer images/videos to your computer. The VJ-ADV features a 2X digital zoom - a single control panel button switches the on-board display to a 2X digital zoom to allow the user a clearer image.

A temperature sensor measures and displays the internal temperature of the camera module and delivers a two stage visual warning this aiding prevention of damage to the scope from overheating. Voice recording is now possible by connecting the hands free microphone allowing audio annotation of the inspection. Playback of audio is also possible through the microphone earpiece.

ESS Code: HRVI.6

  • 6.9mm external diameter
  • 1.5m, 3m or 5m working shaft lengths
  • 4-way articulation
  • Focal distance 15mm to infinity
  • High intensity LED's allow every detail to be illuminated
  • 1 hour of video recording on 1GB Micro SD card
  • Battery: 2 hours typical usage
  • Weight: 20oz
  • Image Sensor: 1/6” es-H2 CCD
  • Resolution: 525(H) x 480(V) TV
  • Tube Diameter: 6.9mm
  • Tube Length: 1.5m, 3m or 5m
  • Articulation Angle: 90’ in every direction
  • Field of View (H/V): 72°/54°
  • Depth of Field: 15mm - ~
  • Light Source: High Intensity LED’s
  • Power: DC 6V
  • Video Output: NTSC
  • LCD Monitor: 3.5” Colour
  • Zoom: 2 x Digital Zoom
  • Camera Tip Temp Display
  • Temperature Alarm Display
  • Recording Medium: SD Card (Max 2GB)
  • Language: English
  • Weight: 20oz
Technical Document

VJ-ADV 6.9MM Datasheet

VJ-ADV 6.9MM Datasheet
  • Steerable Endoscope
  • Cable Support Stand
  • Micro SD Card
  • Sun Screen Shield
  • AV & USB Cables
  • DC Power Cable & UK Adaptor
  • USB Driver Software
  • Hands Free Microphone/earpiece
  • Instruction Sheet
  • Transit Case

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

VJ-ADV 6.9MM Articulating Video Endoscope

hire Price

ESS Code: HRVI.6
£772.00 Weekly

Rates exclude VAT and Damage Waiver

£772.00 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Key Product Features

  • 6.9mm external diameter

  • 1.5m, 3m or 5m working shaft lengths

  • 4-way articulation

  • Focal distance 15mm to infinity
