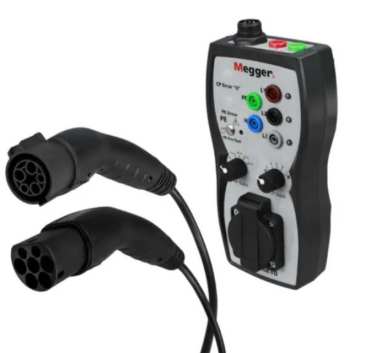

Megger EV Testing Charge Point Adaptor
The Megger EVCA210 Electric Vehicle Charge-Point Adaptor is a dependable tool designed for comprehensive testing of Mode 3 AC EV charging stations, compatible with both single-phase and three-phase systems.
The Megger EVCA210 Electric Vehicle Charge-Point Adaptor is engineered to assist electrical contractors in verifying the functionality and safety of electric vehicle (EV) charging infrastructure. Its compact and user-friendly design ensures efficient testing of Mode 3 AC EV charge points, encompassing both single-phase and three-phase installations.
This adaptor is compliant with UK, European, and international wiring regulations and standards, including IEC/EN 61851-1 and IEC/HD 60364-7-722, ensuring that EV charging stations meet requisite safety and operational criteria. The EVCA210 is equipped with a Type 2 connector, facilitating seamless connection to charging points with panel-mounted sockets or fixed cables.
It also features 4mm connection ports (L1, L2, L3, N, and PE) and a Control Pilot (CP) signal terminal, allowing for comprehensive testing and measurement of CP signals using an oscilloscope. When paired with multifunction testers such as the Megger MFT1741+ or MFT-X1, the EVCA210 enables a wide range of tests, including:
- Verification of wiring and earthing arrangements
- Measurement of loop impedance
- Testing of residual current devices (RCDs), including 6mA DC RCDs
- Functional testing of the charging point's safety features
ESS Code: HMFT.26
- Comprehensive testing of Mode 3 AC EV charge points
- Compatible with single-phase and three-phase systems
- Compact and user-friendly design
- Compliance with UK, European, and international standards
- Equipped with Type 2 connector
- 4mm connection ports for versatile testing
- Control Pilot (CP) signal terminal for signal measurement
- Suitable for use with multifunction testers like Megger MFT1741+
- Facilitates RCD testing, including 6mA DC RCDs
- Optional accessories available for enhanced functionality
Set up an Account
Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.
Megger EV Testing Charge Point Adaptor
hire Price
ESS Code: HMFT.26Rates exclude VAT and Damage Waiver
£38.00 Ex. VAT
Minimum hire period: 5 days
Lead time: 1 day
Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.
Key Product Features
Comprehensive Testing: Facilitates full testing of Mode 3 AC EV charge points.
Versatile Compatibility: Suitable for single-phase and three-phase charging stations.
Connects up to the Megger MFT1741 + and MFT-X1 Multifunction Testers
Standards Compliance: Meets UK, European, and international wiring regulations.
