Megger MIT410 Insulation & Continuity Tester

Overview

The Megger MIT410 is an insulation resistance and continuity tester designed for electrical testing. The instruments extensive range of features makes this the ultimate product for engineers and maintenance technicians. It is capable of insulation testing up 1000V and 200 G Ohms and continuity testing at 200 mA or 20mA down to 0.001.

All instruments meet IEC1010, HD384 and BSEN61557, and are sealed to IP54 for weatherproof performance.Easy to hold and comfortable to use, the large display provides the unique combination of two digital readouts and an analogue arc.All primary results are displayed in the larger digital display and repeated on the analogue arc. Additionally, auxiliary test information such as frequency, leakage current, Insulation or `circuit voltage etc is displayed in the smaller secondary digital display.Rubber over-moulding combines the tough shock absorbing outer protection with excellent grip, on a strong modified ABS housing, providing an almost indestructible case.Battery requirements are 5 AA batteries of either standard Alkaline (supplied) or Nickel Metal Hydride (NiMH) rechargeable type.

ESS Code: HMFT.9

Suitable for both electrical and industrial insulation testing
Selectable test voltages of 50, 100, 250, 500 and 1000V
Insulation testing of up to 200GΩ
Polarisation Index (PI) and Dielectric Absorption Ratio (DAR) functions
Continuity test from 0.01Ω to 10MΩ
Lock button on MΩ function
Auto reverse polarity setup (ON/OFF)
Lead null (<10Ω)
AC/DC voltage measurements to 600V
mV AC/DC range
Frequency measurements from 15 to 450Hz
PASS/FAIL limit alarms
Auto power down
Suitable for being powered by standard AA or NiMH rechargeable batteries
CAT IV 600V and CAT III 1000V safety rated

Tester type: Insulation & Continuity Tester
Minimum test voltage: 50V
Maximum test voltage: 1000V
Maximum insulation resistance measurement: 100GΩ
Display type: Digital
Calibrated: RSCAL
Test current: 20 mA, 200 mA
Battery life: 2200 5-Second Tests
Minimum operating temperature: -20°C
Maximum operating temperature: +55°C
Power source: Battery
Safety category level: CAT IV
Safety category voltage: 600V
Safety category: CAT IV 600 V
Battery type: AA
Weight: 1.8kg
Model number p: MIT410
Height: 89mm
Dimensions: 456 x 178 x 89mm
Length: 456mm
Width: 178mm

Technical Document

Megger MIT410 Datasheet

Download

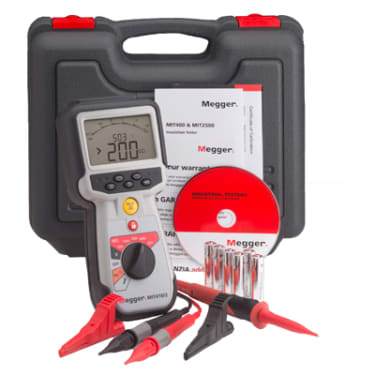

Megger MIT410/2 Insulation Tester
Red/Black Silicone Test Leads with Probes and Clips
SP5 Remote Switch Probe
Owners Information CD
6 x AA Alkaline Batteries
Hard Carrying Case

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Megger MIT410 Insulation & Continuity Tester

hire Price

ESS Code: HMFT.9

£53.00 Weekly

Rates exclude VAT and Damage Waiver

£53.00 Ex. VAT

Qty

On Hire Date

Off Hire Date

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Key Product Features

Suitable for both electrical and industrial insulation testing
Selectable test voltages of 50, 100, 250, 500 and 1000V
Insulation testing of up to 200GΩ
Polarisation Index (PI) and Dielectric Absorption Ratio (DAR) functions
