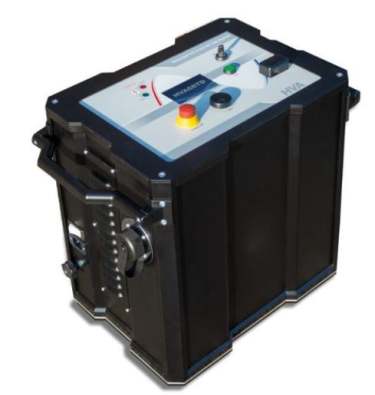

HVA68TD VLF Tester

The HVA68TD VLF Tester is engineered to evaluate medium voltage cables with ratings up to 46 kV, adhering to IEEE 400.2-2013 standards. Its compact and portable design ensures ease of use across various sites. The device performs both Very Low Frequency (VLF) and Direct Current (DC) testing, along with sheath testing and sheath fault location (additional fault probe required). The integrated Tan Delta diagnostics provide straightforward condition assessments of cable systems. Additionally, the Arc Pre-Location (APL) feature allows for the pre-location of arcs in cable insulation, enhancing the efficiency of fault detection and reducing downtime.

ESS Code: HVLF.10

• Compact and portable design
• Integrated Tan Delta diagnostics
• High output power for testing longer cables or multiple phases in parallel
• Arc Pre-Location (APL) functionality
• Dual Discharge Device (electronic and mechanical) for enhanced safety
• 12 kV transient protection
• Programmable test sequences
• Large 4.3" colour display
• Bluetooth and USB connectivity for data transfer


•
• Maximum output voltage: 68 kV peak, 48 kV RMS
• Output load capacity: 2 µF at 0.1 Hz at 44 kV RMS
• Dimensions: 466 x 340 x 510 mm
• Weight: Approximately 57 kg
• Operating temperature range: -10°C to +50°C
• Storage temperature range: -20°C to +60°C
• Power supply: 100-240 V AC, 50/60 Hz


• HVA68TD VLF Tester unit
• High voltage test lead
• Ground lead
• Mains power cable
• Transport case
• User manual
• Calibration certificate


Lead time: 1 days
