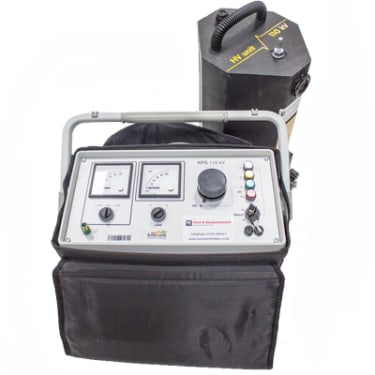

HAGENUK 110 KV DC High Voltage Test Set

The Hagennuk 110 KVDC is an AC/DC high voltage test set that allows the user to perform high voltage tests with a portable instrument. The test set consists of two separate units; a control unit and a high voltage unit. This can be used for testing newly installed cables, periodical cable testing and preventative checks after cable repairs.

The Hagenuk 110 kV HV DC Test Set consists of 2 separate units, a control unit and a high voltage unit. This allows the user to perform high voltage tests with a portable instrument. Over current trip at just above 6 milliamps.
The Hagenuk 110 kV HV DC Test can be used to test newly installed cables, periodical cable testing and preventative checks after cable repairs.


ESS Code: HVDC.1

  • Over current trip is at just above 6 milliamps
  • Low weight and compact design
  • Easy to use
  • Integrate discharge device
  • DC output voltage / Voltage measuring range: 0 ... - 110k
  • Output current at max. output voltage: 4mA
  • Overcurrent trip: great than, or equal to, 6mA
  • Weight operation unit: Approx 13.5kg
  • Weight HV unit: Approx 20kg
  • Dimensions operation unit (W x H x D): 400 x 335 x 200mm
  • Dimensions HV unit (W x H x D): 214 x 670 x 235mm

  • Leather case
  • HV unit with HV attachment
  • Connecting lead, operation unit to HV unit
  • 2m high voltage lead
  • Earthing leads
  • Earthing and discharge rods
  • User guide


Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

HAGENUK 110 KV DC High Voltage Test Set

hire Price

ESS Code: HVDC.1
£395.85 Weekly

Rates exclude VAT and Damage Waiver

£395.85 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.
