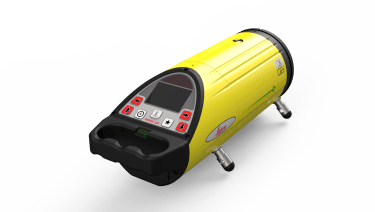

Leica Piper 100 Pipe Laser

The compact design of the Piper 100 allows it to fit inside previously inaccessible pipes and is the only pipe laser which can fit inside a 100mm pipe.

Featuring a highly visible red beam laser which gives the Leica Piper 100 four times better visibility and vastly improves accuracy. The highly visible beam also allows the Piper 100 to work at much greater distances, in sunnier conditions, and even in water.

Grade errors are easily detected and compensated for with the Piper 100’s Automatic grade compensation features. You will no longer have to manually tip the laser for steeper slopes as the Piper 100 self-levels automatically over a full grade range.

ESS Code: SPLA.5

• Compact yet powerful
• Automatic grade compensation
• Heavy duty trivet
• Multi-function remote control
• High-visibility red beam
• Strobe mode for better visibility in challenging environments
• Self-monitoring batter which will monitors charge and discharge to give a highly accurate reading of battery life


• Laser beam colour - Red, Green
• Wave length - 635nm (red), 520nm (green)
• Laser class (red) - 3R (4.75mW), 2M (1.2mW)
• Laser class (green) - 3R (4.8mW), 2M (1.2mW)
• Working range - <200m/650ft
• Grade range - -10% to +25%
• Self-levelling range - -15% to +30%
• Line movement - 6m at 30m / 20ft at 100ft
• Battery - Li-Ion, up to 40h
• Charging time - 4h
• Operating temperature - -20°C to +50°C / -4°F to +122°F
• Dimensions (diameter x length) - 96mm x 267mm / 3.9“ x 10.5“


• Leica Piper 100 Pipe Laser
• GKL311Charger
• GEB221 x 2
• Target
• PTC100 Target Assembly
• Spare feet


Lead time: 1 days
