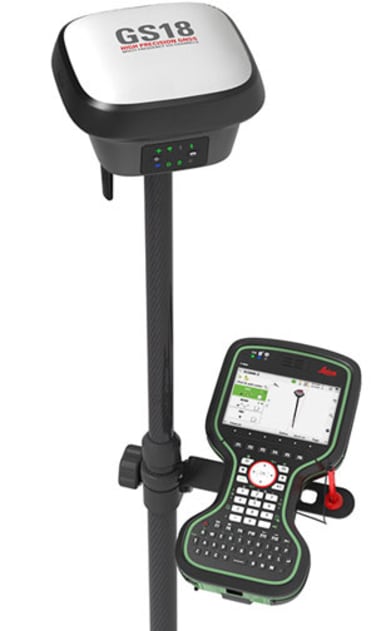

Leica GS18T GNSS Rover

Tilt Compensation allows the operator to measure and collect point data without the need to level the pole. By combining GNSS and inertial measurement units (IMUs), Tilt Compensation makes survey jobs quicker and easier than ever before while allowing the operator to collect points that would have previously been inaccessible due to the need to have a level pole.
The Leica GS18T works with the revolutionary Leica Captivate software, which turns your complex, collected data into workable 3D models.


ESS Code: SGPS.65

• Tilt Compensation
• Calibration-free
• 555 signal channels for faster acquisition and improved sensitivity
• Built to operate in harsh environments
• 500g weight
• Leica RTK technology


Technical Specifications of the Leica GS18T

• Signal tracking- GPS | GLONASS | Galileo | BeiDou L1, L2, L2C, L5 | L1, L2, L2C, L3
• E1, E5a, E5b, AltBOC, E6 | B1I, B1C, B2I, B2a, B3I
• Receiver Autonomous Integrity Monitoring -  Detection and elimination of faulty satellite signals for enhanced position solution and GNSS integrity
• Number of channels - 555 (more signals, fast acquisition, high sensitivity)
• Time for initialisation - Typically 4s
• Storage - Internal 4GB expandable with SD card
• Operating time - up to 8h
• Weight - 1.23kg/ 3.53kg on pole
• Dimensions (H x W x D) - 173mm x 173mm - 109mm
• Operating temperature - -40 to +65°C
• Storage temperature - -40 to +85°C
• Environmental protection - IP68

• 2 x GEB311
• CS20 Package
• Sim Card
• Smartnet Licence
• GLS30
• GHT66 CS20 Pole Clamp
• GAT27 GSM Antenna


Lead time: 1 days
