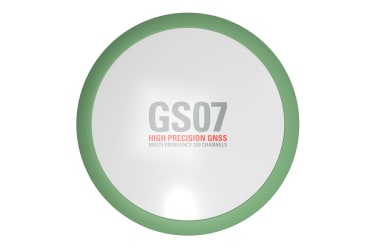

Leica GS07 SmartAntenna GNSS System

The Leica GS07 SmartAntenna is a lightweight and sturdy GNSS System with over 320 channels, multi-frequency, and multi-constellation.

The GS07 is fast and reliable with exceptional functionality across a variety of different applications.
Featuring Leica Captivate field software, a revolutionary survey software that creates realistic 3D renderings based on data captured while remaining simple and easy to use for users of all experience levels.


ESS Code: SGPS.74

  • Up to 320 channels
  • RTK Plus
  • SmartTrack signal tracking
  • Lemo and Bluetooth


Technical Specifications of the Leica GS07
Signal tracking - GPS | GLONASS | Galileo | BeiDou | QZSS | NavIC
Number of channels - 320 hardware channel
Time for initialisation - Typically 6 seconds
Post processing - Static (phase) with long observations Hz 3 mm + 0.5 ppm / V 6 mm + 0.5 ppm, Static and rapid static (phase) Hz 5 mm + 0.5 ppm / V 10 mm + 0.5 ppm
Code differential - Hz 25 cm | V 50 cm
Communication ports - Lemo - USB and RS232 serial, Bluetooth - Bluetooth v2.00 + EDR, class 2
r
External data links - Bluetooth GSM / GPRS / UMTS / LTE / CDMA phone modem
User interface - On / Off button, 3 status LEDs
Weight - 0.7 kg / 2.7 kg standard RTK rover setup on pole
Dimensions (D x H)  - 186 mm x 71 mm
Operating temperature - -40 to 65°C
Storage temperature - -40 to 80°C


Technical Document

Leica GS07 SmartAntenna GNSS System Overview

Download
Technical Document

Leica GS07 SmartAntenna GNSS System Data Sheet

Download

Leica GS07 SmartAntenna GNSS System
2 x GEB311
CS20 Package
Sim Card
Smartnet Licence
GLS30 Pole
GHT66 CS20 Clamp
GHT63 CS20 Pole Clamp
GKL341 4 Slot Battery Charger
2 x GEB212 Battery


Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Leica GS07 SmartAntenna GNSS System

hire Price

ESS Code: SGPS.74
£275.60 Weekly

Rates exclude VAT and Damage Waiver

£275.60 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Frequently Hired Together

Leica GS07 SmartAntenna GNSS System
Leica TS16 Robotic Total Station
Leica NA720 Automatic Level

Leica GS07 SmartAntenna GNSS System

SGPS.74
1
£275.60 Weekly
Hire Now

Leica TS16 Robotic Total Station

1
£267.75 Weekly
Hire Now

Leica NA720 Automatic Level

1
£15.90 Weekly
Hire Now

Total Combined Hire Price

£559.25 per week

Rates exclude VAT and Damage Waiver

£559.25 Ex. VAT

Minimum hire period: 5 days

Please note you will be charged for the minimum hire period if your order is for a period less than this.

How to use Guide

Marketing Cookies must be enabled to view third party videos

Key Product Features

  • Up to 320 channels

  • RTK Plus

  • SmartTrack signal tracking

  • Lemo and Bluetooth
